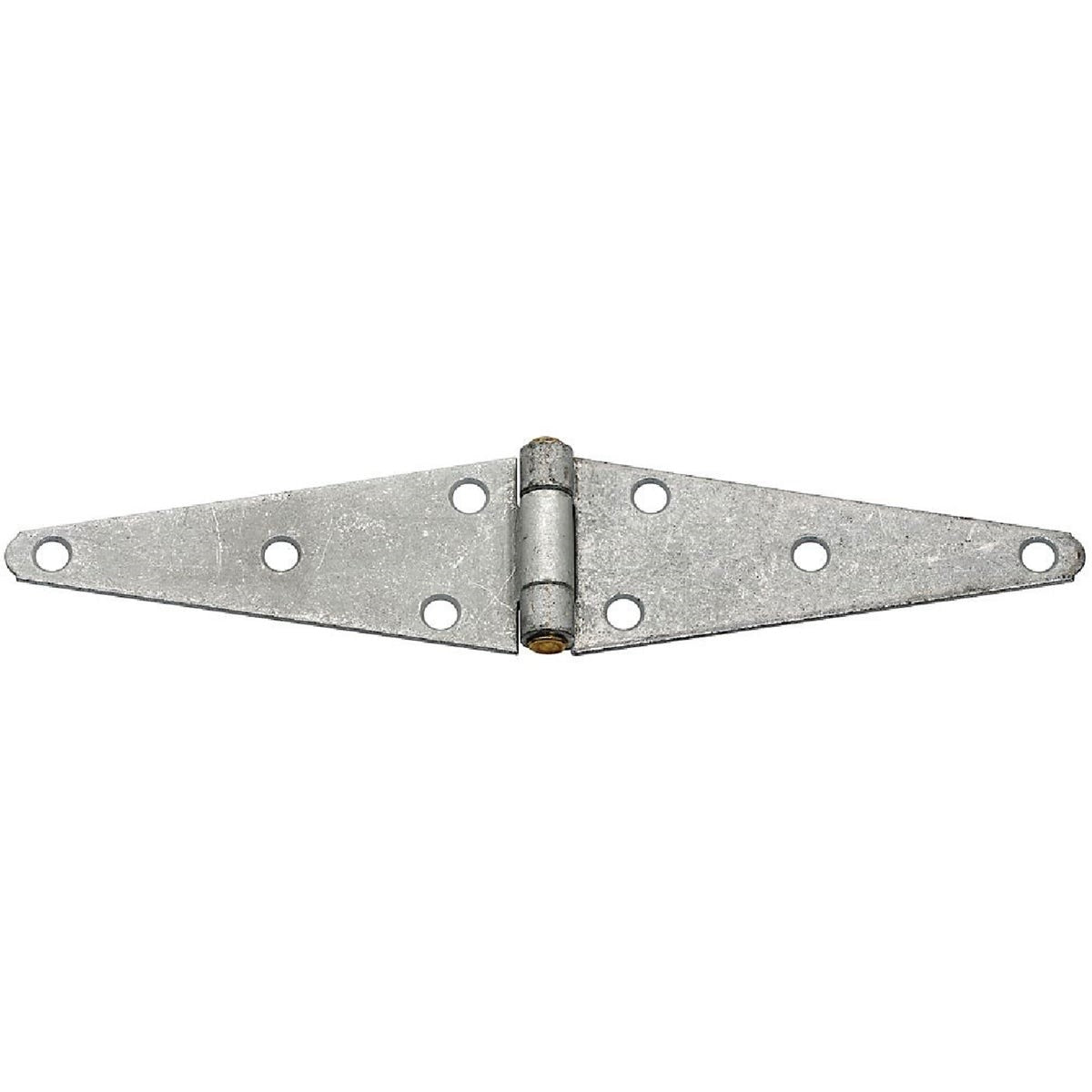

National Marker N128322 Galvanized Strap Hinge 2.43x6 in

Product Description

The NATIONAL MARKER N128322 is a galvanized heavy-duty strap hinge built for wide-surface mounting applications in demanding outdoor environments. Measuring 2.43 inches by 6 inches, it is constructed from steel with a WeatherGuard coating that provides maximum protection against moisture, rust, and outdoor exposure. The offset screw hole pattern adds structural strength and helps prevent wood splitting during installation. A tight pin design allows use in both right-hand and left-hand orientations, making it a versatile solution for field installation without special hardware. Licensed contractors and general tradespeople install this hinge on barn and shed doors, storage bins, tool boxes, and gates.

This strap hinge is suited for residential and light commercial applications where wide door leaves or heavy panel construction require a longer hinge footprint. The 6-inch leaf length distributes load across a greater surface area compared to standard butt hinges, reducing stress on fasteners and mounting substrate. It is a practical replacement or first-install choice for agricultural structures, utility buildings, and outdoor enclosures requiring corrosion-resistant hardware.

Key Features

• Steel construction with WeatherGuard galvanized coating for outdoor corrosion resistance
• 2.43-inch by 6-inch leaf dimensions suit wide mounting surfaces
• Offset screw holes prevent wood splitting and improve fastener holding strength
• Tight pin design supports right-hand or left-hand door installation
• Sold individually; boxed loose items are bar coded with no screws included

Compatibility

Designed as an OEM-style replacement or direct-install strap hinge for barn doors, shed doors, storage bins, tool boxes, and gates requiring a wide-surface heavy-duty hinge. Compatible with the National catalog model No. 282BC and V282 series.

Installation Notes

Installation is typically performed by carpenters, general contractors, or experienced tradespeople using standard hand tools. Ensure the mounting surface is structurally sound and free of rot or damage before fastening. Use appropriately rated exterior screws or bolts compatible with the substrate material; screws are not included with boxed loose units. Verify door alignment and swing direction before final tightening to confirm the tight pin orientation is correct for the application.

Technical Specifications

• Leaf Length: 6 inches
• Leaf Width: 2.43 inches
• Material: Steel
• Finish: Galvanized with WeatherGuard coating
• Weight: 0.593 pounds
• Pin Type: Tight pin
• Hand: Right or left hand
• UPC: 00038613128323

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N128322
