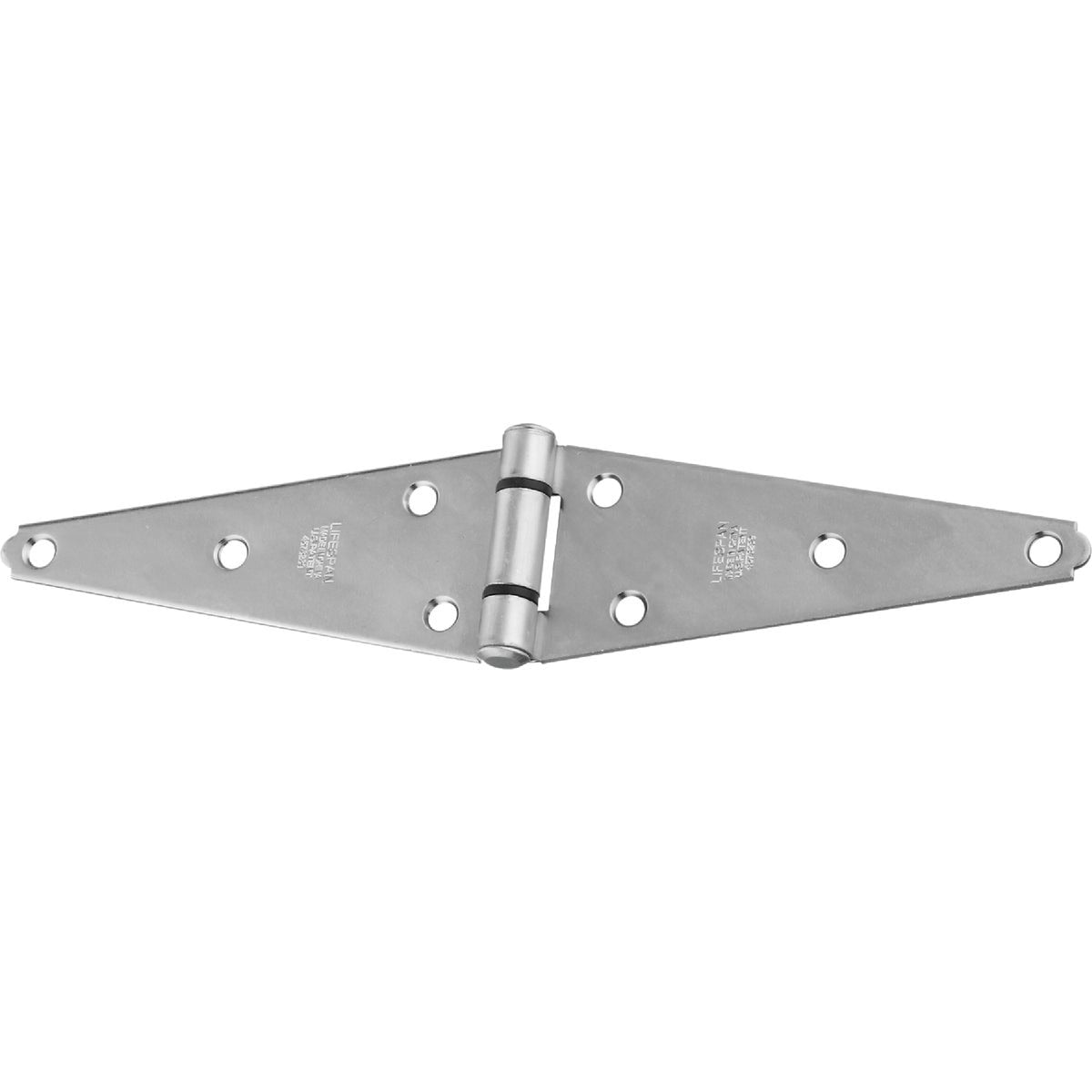

National Marker N128074 Heavy-duty Strap Hinge Zinc 2.43x6 in

Product Description

The NATIONAL MARKER N128074 is a heavy-duty strap hinge built for applications that demand wide mounting surface coverage and durable outdoor performance. Manufactured from steel with a galvanized WeatherGuard coating, this hinge resists corrosion and stands up to prolonged exposure to outdoor elements. It measures 2.43 inches by 6 inches and is sold individually. The offset screw hole pattern is engineered to add strength at the fastener points and reduce the risk of wood splitting during installation. A tight pin design allows use in both right-hand and left-hand door configurations without modification.

This strap hinge is suited for residential and light commercial applications where a wide, flat mounting surface is present. Typical installations include barn doors, shed doors, storage bin lids, tool boxes, and gates. The galvanized finish makes it appropriate for exterior use where moisture and weather exposure are ongoing concerns. It is cataloged under National model numbers 282BC and V282 series, which can assist with cross-referencing against existing hardware specifications on a job site.

Key Features

• Steel construction with galvanized WeatherGuard coating for corrosion resistance
• Offset screw holes reduce wood splitting risk and improve fastener holding strength
• Tight pin design supports both right-hand and left-hand mounting configurations
• Wide strap profile suited for barn doors, shed doors, gates, and storage enclosures
• Sold individually; boxed loose version ships without screws

Compatibility

Corresponds to National catalog model numbers 282BC and V282 series. Designed as an OEM-style replacement or direct-install strap hinge for wide-surface door and gate hardware applications.

Installation Notes

Installation is typically performed by general contractors, carpenters, or experienced DIYers using standard hand tools. Before installation, ensure the mounting surface is structurally sound and free of rot or damage that could compromise fastener holding. Use fasteners appropriate for the substrate material and load rating of the door or gate. Boxed loose units do not include screws and will require separately sourced hardware sized to the application.

Technical Specifications

• Width: 2.43 inches
• Length: 6 inches
• Weight: 0.564 pounds
• Material: Steel
• Finish: Galvanized with WeatherGuard coating
• UOM: Each
• UPC: 00038613205215

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N128074
