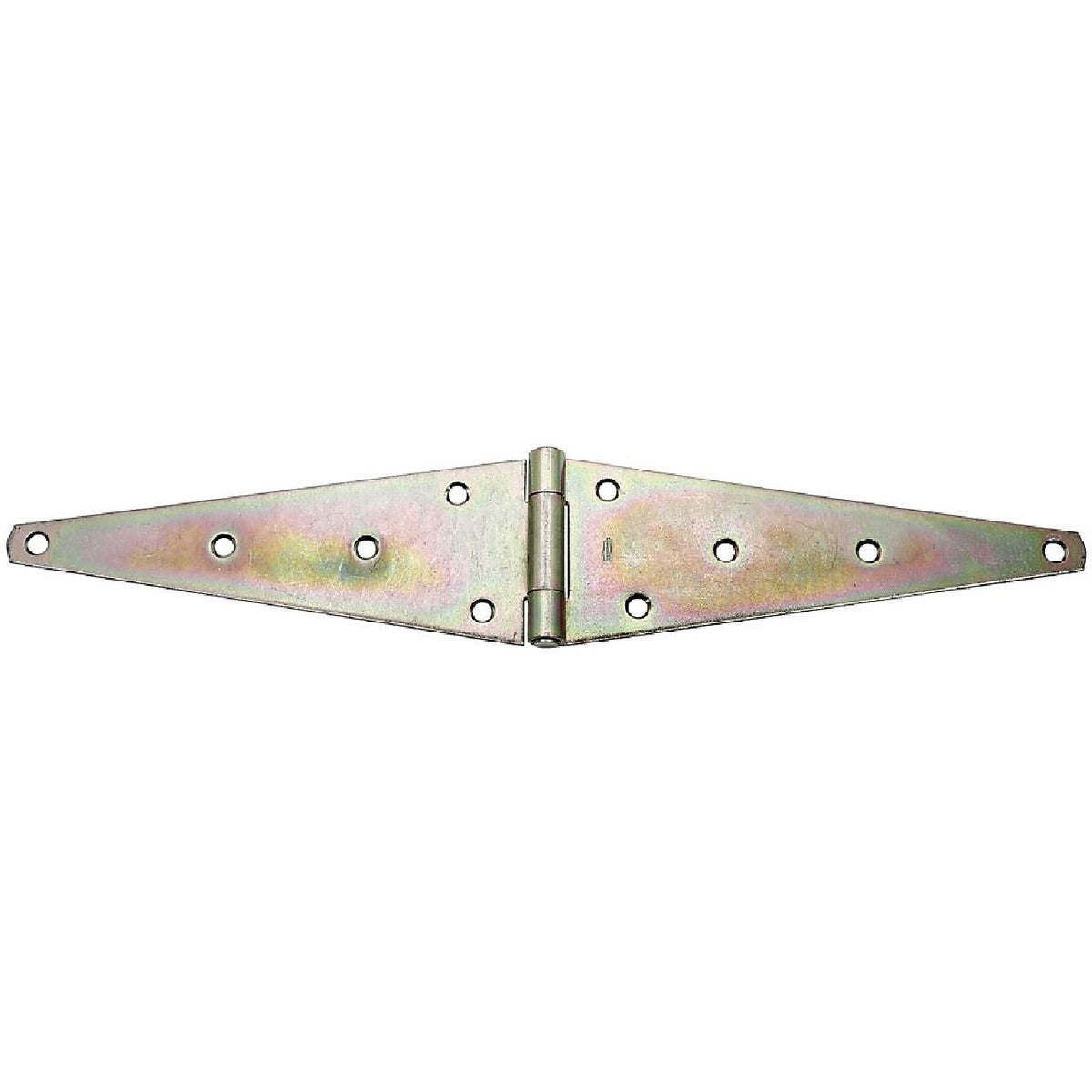

National Marker N127910 Heavy-duty Strap Hinge 4.60x12 in Zinc

Product Description

The NATIONAL MARKER N127910 is a heavy-duty strap hinge constructed from steel with a zinc galvanized WeatherGuard coating designed to resist corrosion and outdoor exposure. Measuring 4.60 inches by 12 inches, this hinge is built for applications that require a wide mounting surface and long-term mechanical strength. The offset screw hole pattern reduces the risk of wood splitting under load. A tight pin design allows installation for either right-hand or left-hand door swings without additional hardware. Licensed tradespeople and experienced installers handling barn, shed, gate, and outdoor storage builds will find this hinge suitable for demanding field conditions.

This strap hinge is intended for residential and light commercial applications where wide-leaf hardware is required. Typical uses include barn doors, shed doors, storage bin lids, tool box panels, and gates. The galvanized zinc finish with WeatherGuard coating makes it appropriate for exterior installations exposed to moisture, temperature cycling, and general outdoor conditions. It ships as a boxed loose item with bar coding and no screws included.

Key Features

• Steel construction with zinc galvanized WeatherGuard coating for outdoor corrosion resistance
• Offset screw holes designed to prevent wood splitting at fastener points
• Tight pin allows right-hand or left-hand door installation without modification
• Wide 12-inch leaf length suited for barn doors, shed doors, gates, and storage bins
• Heavy-duty designation indicating reinforced construction for high-stress pivot points
• Boxed loose packaging with bar code included; no screws supplied

Compatibility

Corresponds to National catalog model No. 282BC and V282 series. Designed as a heavy-duty OEM-style strap hinge replacement or new installation fitting for applications with wide mounting surfaces including barn and shed doors, storage bins, tool boxes, and gates.

Installation Notes

Installation is typically performed by carpenters, general contractors, or experienced tradespeople. Power down any automated door operators before servicing hinges on motorized panels. Use appropriately rated wood screws or through-bolts matched to the mounting surface material and load requirements; screws are not included with this unit. Verify that the mounting surface has sufficient thickness and structural integrity to support the hinge leaf under expected load.

Technical Specifications

• Leaf Length: 12 inches
• Leaf Width: 4.60 inches
• Material: Steel
• Finish: Zinc galvanized with WeatherGuard coating
• Weight: 3.536 pounds
• Unit of Measure: Each
• UPC: 00038613127913

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N127910
