National Marker N115519 Screen Door Hinge 3 in 2-pack

Product Description

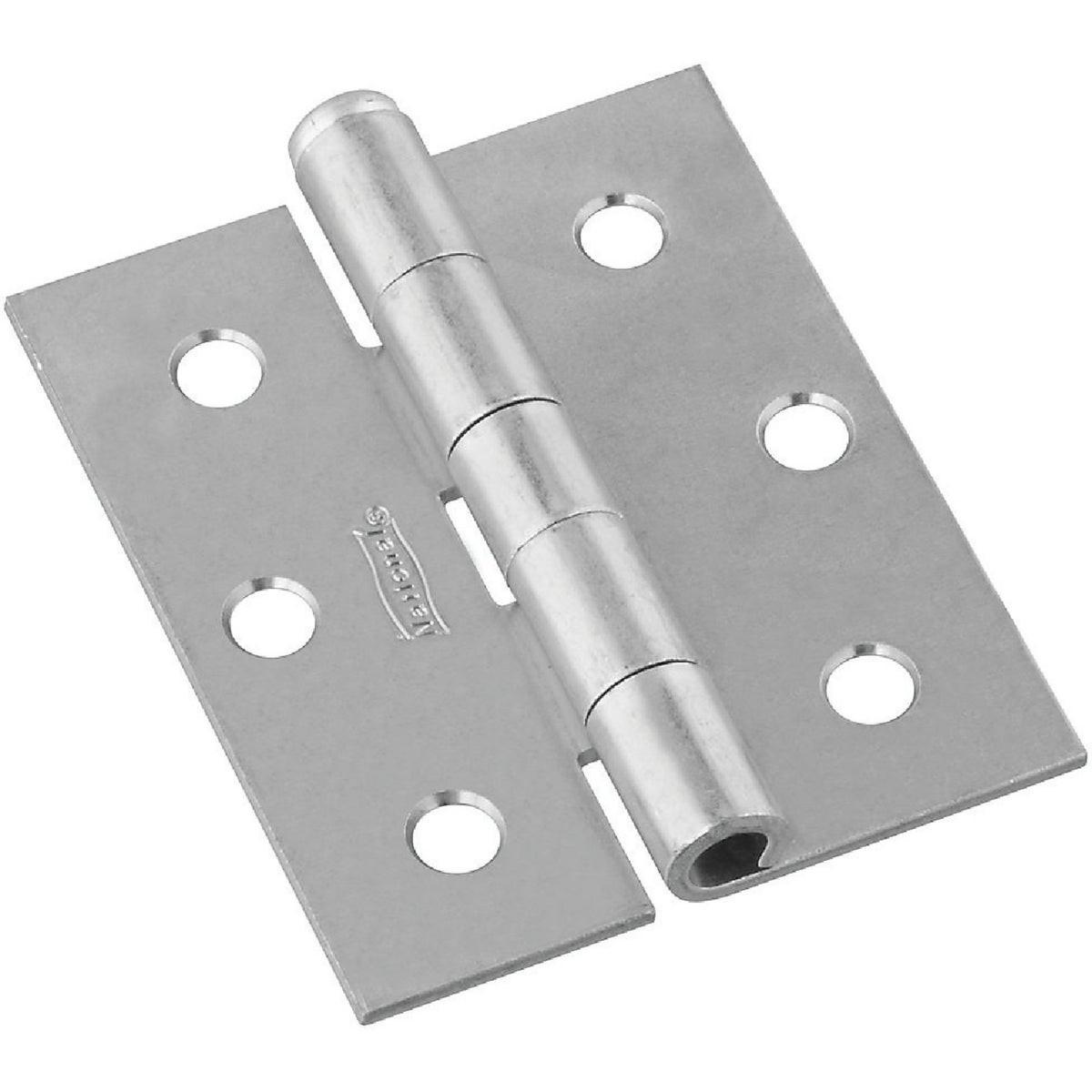

The NATIONAL MARKER N115519 is a square corner zinc screen door hinge sold as a 2-pack. It features a button tip, loose pin, and unswaged construction, making it reversible for left- or right-hand door applications. Each leaf is drilled with countersunk screw holes on both sides for flush fastener seating. The hinge measures 3 inches by 2-1/2 inches and is finished in BakEnamel zinc. Flat head screws measuring 3/4 inch by 8 are included. This hinge is suited for residential screen door and light-duty door hardware installations handled by carpenters, contractors, and experienced DIYers.

This hinge is designed for full-surface, half-surface, half-mortise, or offset mounting configurations. It is especially useful in applications where the door and jamb are not flush, making it a versatile choice across a range of screen door framing conditions. The included hardware allows for immediate installation without sourcing additional fasteners. The reversible design simplifies stocking for service calls requiring either hand orientation.

Key Features

• Button tip and loose pin design for easy door removal without full disassembly
• Unswaged, reversible construction suits both left- and right-hand applications
• Compatible with full-surface, half-surface, half-mortise, and offset mounting
• Countersunk screw holes on both sides of each leaf for flush fastener seating
• BakEnamel zinc finish for corrosion resistance in screen door environments
• Includes one pair with 3/4 inch by 8 flat head screws

Compatibility

Designed as a replacement or new-installation screen door hinge for residential applications where door and jamb surfaces may not be flush. Suitable for full-surface, half-surface, half-mortise, and offset mounting scenarios.

Installation Notes

Installation is typically performed by carpenters or general contractors using a drill, screwdriver, and standard chiseling tools for mortise applications. Power down any associated door closer or electronic latch hardware before beginning work. Ensure the door frame is plumb and square before final fastener tightening to prevent binding. Follow local building codes for door hardware installation where applicable.

Technical Specifications

• Hinge Size: 3 inches x 2-1/2 inches
• Finish: BakEnamel Zinc
• Tip Style: Button Tip
• Pin Type: Loose Pin
• Swage: Unswaged
• Included Fasteners: 3/4 inch x 8 Flat Head Screws
• Package Quantity: 2-Pack (1 Pair)
• Weight: 0.607 pounds

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N115519
