National Marker N115451 Screen Door Hinge 3 Inch 2-pack

Product Description

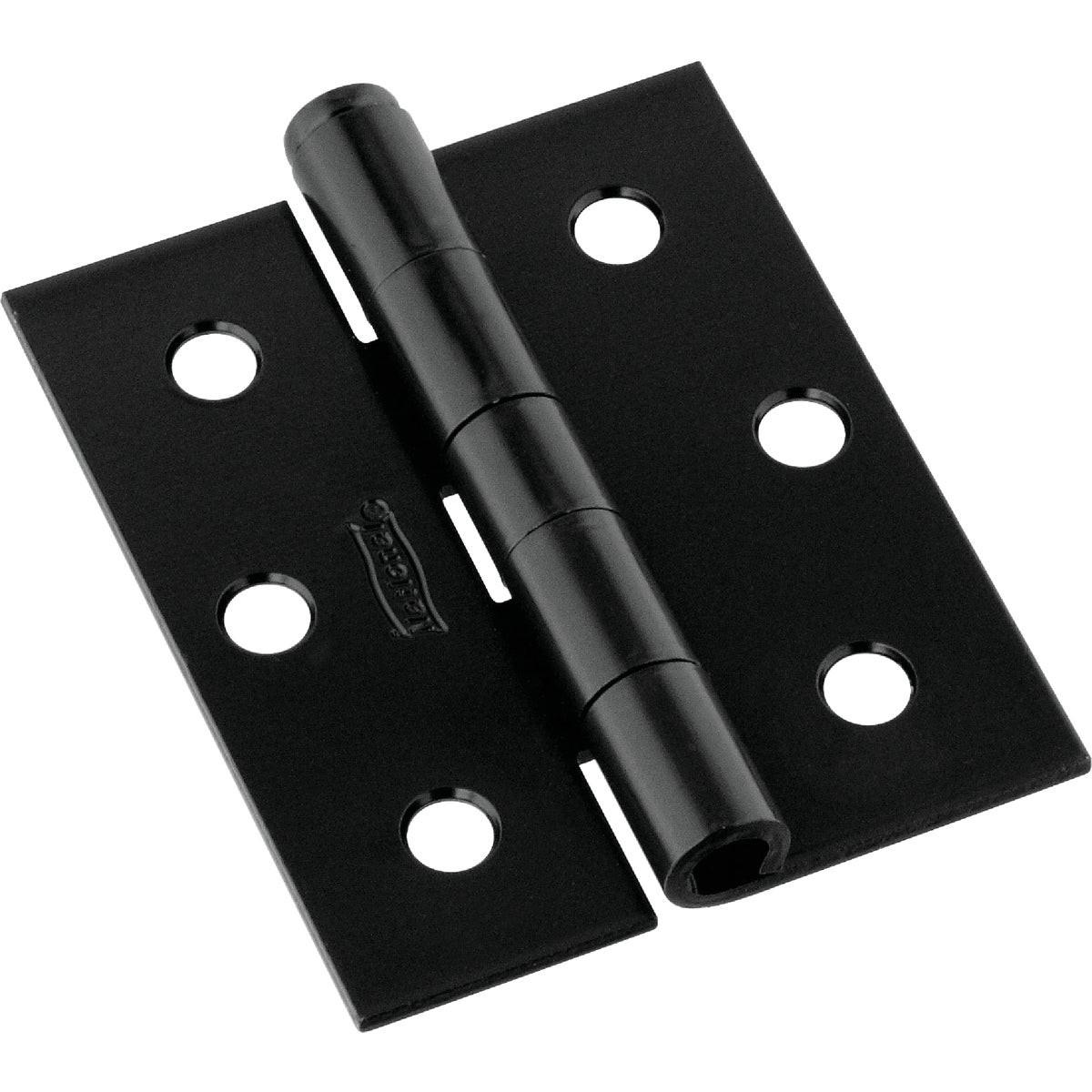

The NATIONAL MARKER N115451 is a 3-inch square corner screen door hinge sold in a 2-pack, designed for light-duty door hanging applications in residential and light commercial settings. This is a button tip, loose pin, unswaged, reversible hinge built to handle full-surface, half-surface, half-mortise, and offset installations where the door and jamb are not flush. Each leaf features countersunk screw holes on both sides for clean, flush fastener seating. The hinge carries a BakEnamel finish available in brass and zinc, providing corrosion resistance suited to screen door exposure. Each pair includes 3/4-inch x 8 flat head screws for a complete install out of the package.

This hinge is intended for screen doors, storm doors, and similar lightweight door assemblies in residential construction or repair applications. The reversible design allows installation on left-hand or right-hand doors without requiring a separate SKU. The loose pin configuration makes door removal straightforward during service or seasonal storage. Carpenters, general contractors, and maintenance technicians are the typical installers for this type of hardware.

Key Features

• Button tip, loose pin design allows easy door removal by pulling the hinge pin
• Reversible for left-hand or right-hand door applications
• Unswaged leaves work for full-surface, half-surface, half-mortise, and offset installations
• Countersunk screw holes on both sides of each leaf for flush fastener seating
• BakEnamel finish available in brass and zinc for corrosion resistance
• Includes matching 3/4-inch x 8 flat head screws

Compatibility

Designed as an OEM-style replacement or new-installation hinge for residential and light commercial screen doors and storm doors where a 3-inch square corner loose pin hinge is specified. Confirmed manufacturer model reference: National Model V129.

Installation Notes

Installation is typically performed by carpenters or general maintenance technicians using a drill, screwdriver, and chisel for mortise work where required. Ensure the door is fully supported before driving screws to prevent misalignment. For offset installations, verify the gap between door and jamb before selecting mounting style. Use the supplied flat head screws to maintain proper leaf seating depth.

Technical Specifications

• Hinge Size: 3 inches x 2.5 inches
• Tip Style: Button tip
• Pin Type: Loose pin
• Leaf Style: Unswaged, reversible
• Mounting Types: Full-surface, half-surface, half-mortise, offset
• Included Hardware: 3/4-inch x 8 flat head screws
• Finish Options: BakEnamel brass and zinc
• Package Contents: 1 pair (2-pack)
• Package Weight: 0.613 pounds
• UPC: 00038613115453

Standard Information

• Brand: NATIONAL MARKER
• Manufacturer Part Number: N115451
