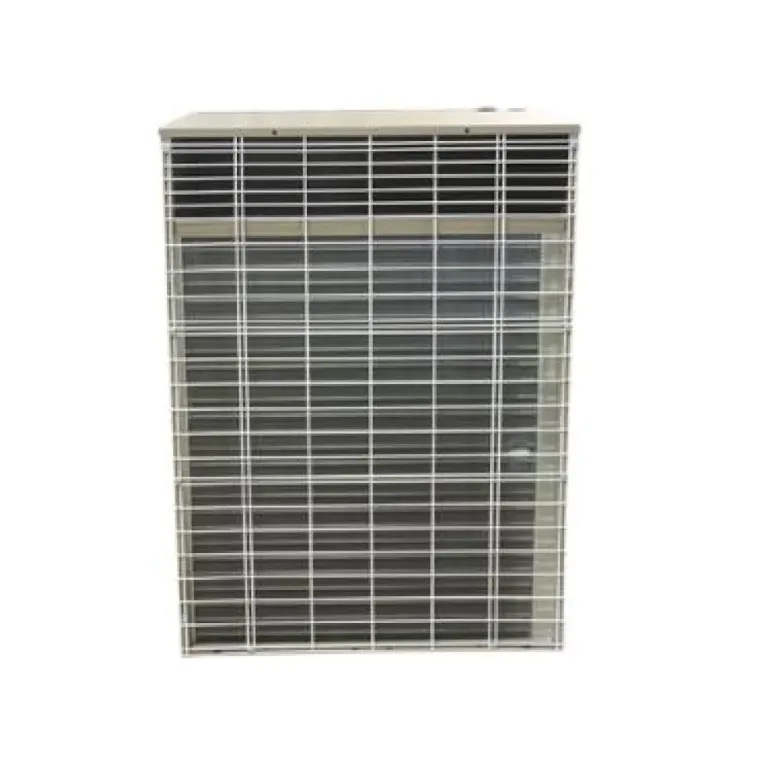

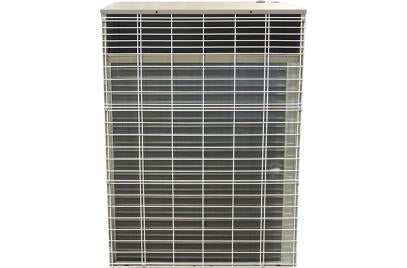

National Comfort Products NCP4183000B Thru-the-wall Split System Condensing Unit 1.5 Ton

Product Description

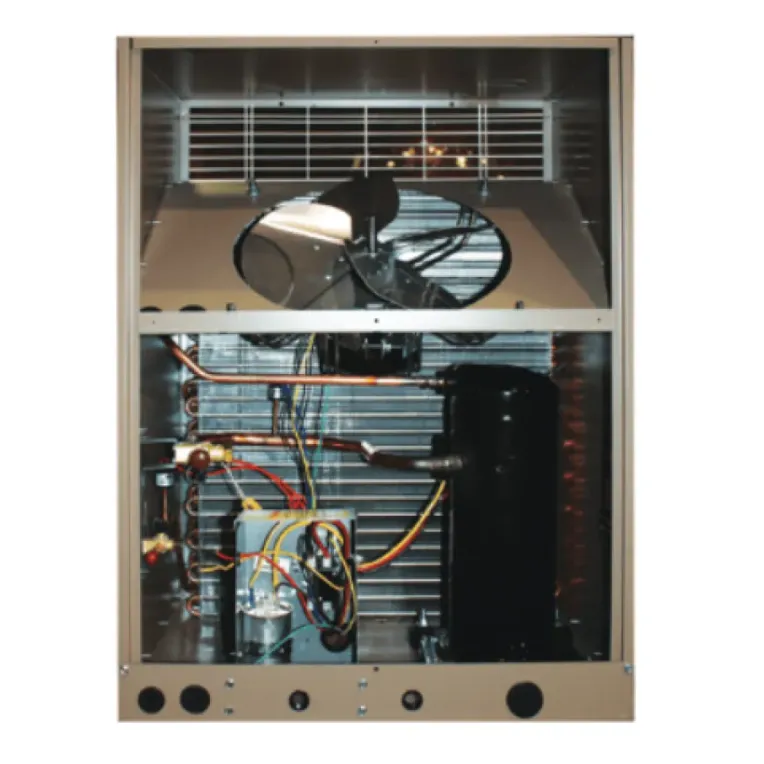

The National Comfort Products NCP4183000B is a 1.5 Ton Thru-the-wall Split System Condensing Unit designed for use with NCP Air Handlers, Coils, or specific other air handlers that feature ECM motors. This unit offers a heavy-duty water-resistant cabinet, ensuring durability and longevity. It includes a high-efficiency compressor that uses R-410A refrigerant for optimal performance. The design allows for easy access to the condenser fan and incorporates brass service valves for convenience.

• Compatible with NCP Air Handlers and ECM motor-based air handlers
• Heavy-duty water-resistant cabinet for enhanced protection
• High efficiency R-410A compressor included

Product Highlights

This unit is ideal for residential or light commercial applications where efficient cooling is required.

Product Information

Standard Information

• Product Code: NCP4183000B
• Manufacturer: National Comfort Products

Technical Specifications

• SKU: NCP4183000B
• Compressor RLA: 10.3
• Compressor LRA: 45.7
• Condenser Coil Specs: 3.77 ft face area, 16 FPI
• Voltage-phase-Hz: 208/230 - 1~ - 60
• Liquid Valve: 3/8 inches
• Suction Valve: 3/4 inches
• EER: 11
• Nominal Tons: 1.5
• Refrigerant: R-410A
• SEER: 13
• Suction Fitting: 3/4 inches
• Liquid Connection: 3/8 inches
