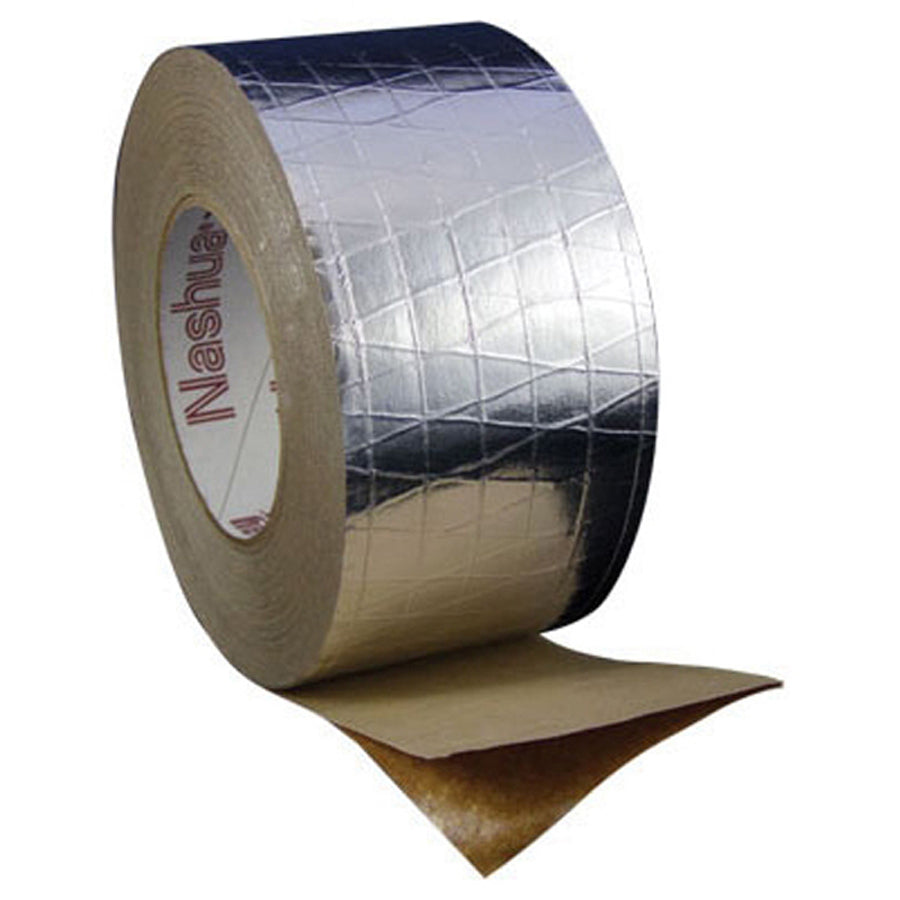

Nashua FSK_3X50YD Fsk Insulation Jacketing Tape 3in X 50yd

Product Description

The NASHUA FSK_3X50YD is a foil/scrim/kraft (FSK) insulation jacketing tape designed for sealing, patching, and joining insulation systems in HVAC and mechanical insulation applications. The tape measures 3 inches wide by 50 yards long with a total thickness of 9.25 mil. It uses a synthetic rubber adhesive over an aluminum and kraft paper laminate backing, delivering aggressive, high-tack bonding to duct board, fiberglass pipe insulation, and other insulated surfaces. Licensed HVAC and mechanical insulation contractors rely on this tape for demanding installations where moisture, UV exposure, and mold resistance are required.

This tape is suited for residential and commercial HVAC insulation work, including taping insulation joints and patching scrim-reinforced duct installations. The low-VOC, non-solvent adhesive system keeps odor down in occupied buildings and can contribute toward satisfying EQ Credit 4.1 (Low Emitting Materials) under LEED certification requirements. It performs across a rated temperature range of 40 to 200 degrees F, covering typical duct and pipe insulation service conditions in both conditioned and unconditioned spaces.

Key Features

• Foil/scrim/kraft laminate backing provides high tear resistance and structural integrity
• Synthetic rubber adhesive delivers super high tack and aggressive bonding to insulation surfaces
• UV, moisture, and mold resistant construction for long-term durability
• Low VOC, non-solvent formula reduces odor during installation in occupied areas
• Eligible to contribute toward LEED EQ Credit 4.1 (Low Emitting Materials)
• Listed to UL 723 and tested to PSTC-101 standards

Compatibility

Designed for use in insulation jacketing applications including taping insulation joints and patching scrim-reinforced duct board installations in HVAC and mechanical insulation systems.

Installation Notes

This tape is typically applied by licensed mechanical insulation contractors or HVAC technicians during duct and pipe insulation work. Surfaces should be clean, dry, and free of dust or oil before tape application to ensure full adhesive contact. Power down any HVAC equipment before working on associated duct sections. Apply firm hand pressure or use a seam roller across the full tape width to achieve complete bond, particularly at joints and lap seams.

Technical Specifications

• Width: 3 inches
• Length: 50 yards
• Thickness: 9.25 mil
• Temperature Rating: 40 to 200 degrees F
• Color: Aluminum
• Backing Material: Kraft paper laminate (aluminum foil/scrim/kraft)
• Adhesive: Synthetic rubber
• Liner: Unbleached natural kraft paper
• Type: Insulation jacketing tape, 1-coated
• Applicable Standards: UL 723, PSTC-101, LEED

Standard Information

• Brand: NASHUA
• Manufacturer Part Number: FSK_3X50YD
