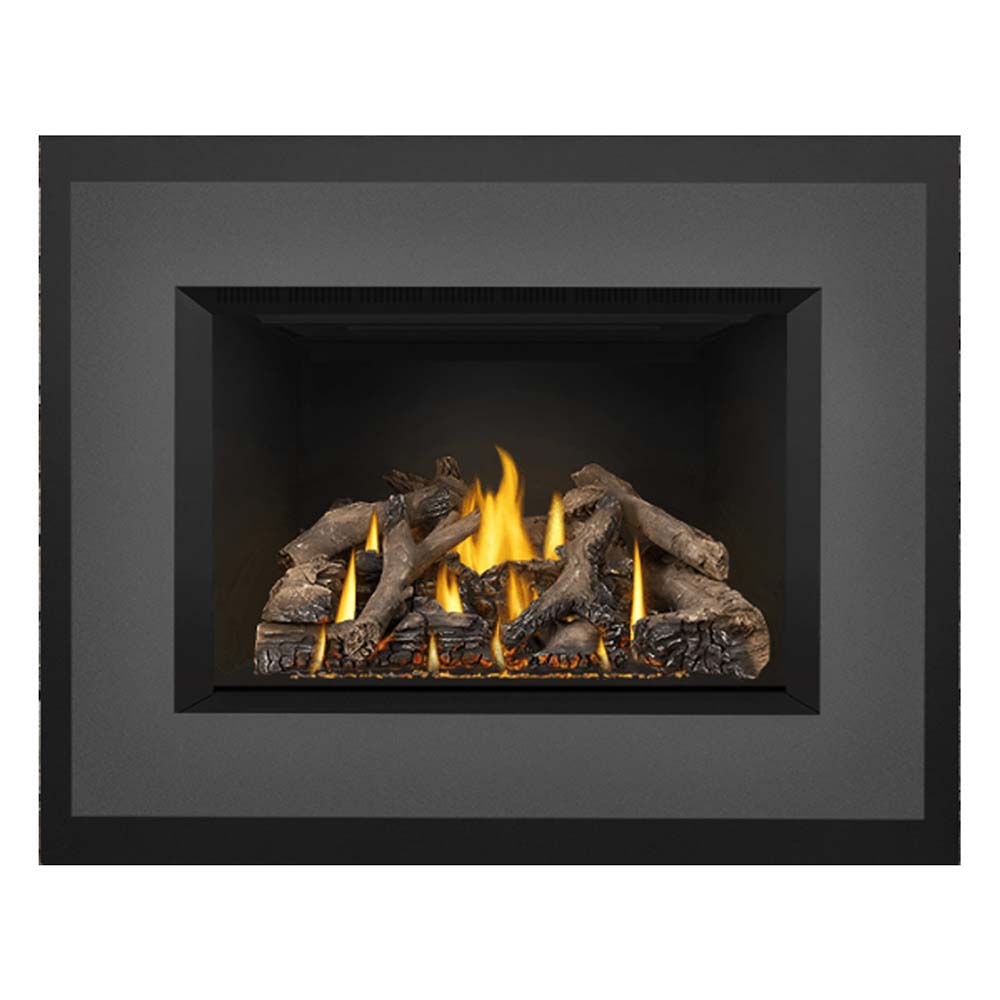

Napoleon gdix4n-1 Direct Vent Gas Fireplace Insert 36000 Btu/h

Product Description

The NAPOLEON gdix4n-1 is a direct vent gas fireplace insert designed for installation into an existing masonry or factory-built fireplace opening. It operates on natural gas or propane and delivers up to 36,000 BTU/h through a dual burner split flow system that allows independent control of the front and rear burner zones. The unit uses a SIT Proflame II electronic ignition system for reliable lighting and remote control compatibility. A clean face design with flush finish accessories integrates the insert into the surrounding surround without exposed framing. A heat circulating blower moves warm air into the living space. This insert is approved for mobile home installation.

The gdix4n-1 is suited for residential retrofit applications where an existing fireplace opening is being converted to a sealed, direct vent gas appliance. The direct vent system draws combustion air from outside and exhausts through a dedicated 3-inch by 3-inch coaxial vent termination, keeping indoor air quality unaffected. The single-sided viewing configuration and gun metal color finish make it compatible with a range of traditional and contemporary interior styles. Installation is performed by a licensed gas technician or HVAC professional in coordination with local mechanical and building codes.

Key Features

• Up to 36,000 BTU/h maximum output on natural gas or propane
• SIT Proflame II electronic ignition with remote control compatibility
• Dual burner split flow system with independent front and rear burner control
• Sealed direct vent design using a 3-inch by 3-inch venting configuration
• Heat circulating blower for active air distribution
• Mobile home approved for broader installation eligibility
• Clean face design with flush finish accessories for a fully integrated appearance

Compatibility

The gdix4n-1 belongs to the NAPOLEON Oakville Series and is designed as a direct vent insert replacement or new installation for existing residential fireplace openings. Compatible with both natural gas and propane fuel supplies.

Installation Notes

Installation must be performed by a qualified gas technician or licensed HVAC professional in accordance with local building and mechanical codes, including applicable NFPA and IFGC requirements. Shut off the gas supply at the service valve and disconnect electrical power before beginning any service or installation work. The direct vent termination must be routed and sealed per the manufacturer installation instructions to maintain the sealed combustion system. Do not connect this unit to a shared or B-vent flue.

Technical Specifications

• BTU/h Maximum: 36,000 BTU/h
• Fuel Type: Natural Gas, Propane
• Ignition Type: Electronic (SIT Proflame II)
• Venting Type: Direct Vent
• Venting Size: 3 inches x 3 inches
• Product Width: 33.75 inches
• Product Height: 24.56 inches
• Style: Single-Sided
• Color: Gun Metal
• Series: Oakville
• Mobile Home Approved: Yes

Standard Information

• Brand: NAPOLEON
• Manufacturer Part Number: gdix4n-1
