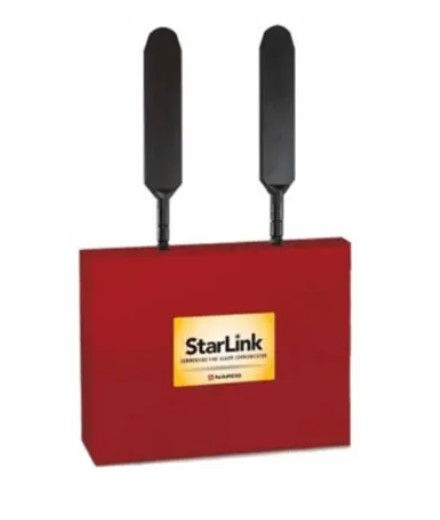

Napco SLE-LTEVI-FIRE StarLink Universal Commercial Fire Dual-Path Internet/Cellular Verizon LTE Alarm Communicator

Product Description

The Napco StarLink SLE-LTEVI-FIRE is a universal full-event sole and dual-path IP/cellular Verizon LTE commercial fire alarm communicator designed for new or existing fire alarm control panels (FACPs). Compatible with any 12V to 24V brand FACP using Contact ID or 4/2 formats. It comes in a durable ABS plastic enclosure and includes 4 programmable EOLR zone inputs and 2 Form C Relay outputs.

• Universal full event sole and dual-path cellular and/or IP commercial fire alarm reporting from any panel brand.
• Supports 12V-24V control panels and FACPs that communicate using Contact ID and 4/2.
• Patented Signal Boost and Dual Diversity Antennae for maximum signal acquisition and null avoidance.

Product Highlights

The SLE-LTEVI-FIRE provides full data reporting to any central station and is easily activated through www.napcocomnet.com.

Product Information

Standard Information

• Brand: NAPCO
• Manufacturer Part Number: SLE-LTEVI-FIRE
• Country of Origin: DO

Technical Specifications

• Cellular Network: Verizon LTE
• Ethernet: Yes
• Onboard: 2 TelCo jacks for EZ FACP Connect; 4 Programmable EOLR zone inputs; 2 Form C Relay outputs (avoids reqt for supervision module)
• Encosure: ABS Plastic housing
• Electrical Input Ratings: Panel-Powered Tech
• Input Voltage: 10-25VDC
• Input Current: 162mA to 100mA standby; 300mA peak during transmissions
• Inputs: IN1, IN2, IN3, IN4, IN5
• Input Ratings: IN1: 9-25VDC Max input current 2mA IN2,IN3,IN4,IN5: 9-25VDC Max input current 1.2mA
• Outputs: OUT1, OUT2, PGM3
• Output Ratings: OUT1,OUT2:Dry Contact, Form C Relay, 30V AC/DC, 500mA Max PGM3: Open Collector Outputs Max 3V when active, Max 25V when active. Max current 24mA@ 25V
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity: Maximum 93% (non-condensing)
