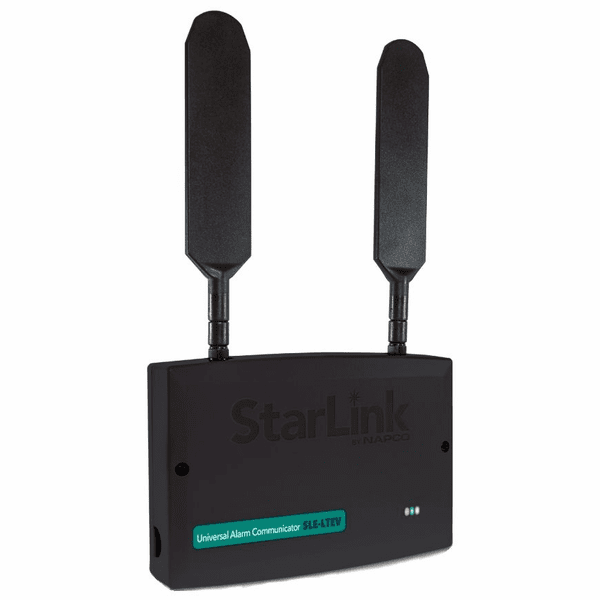

Napco SLE-LTEV-FIRE StarLink Commercial Fire Sole Path Cellular Alarm Communicator 10V REPLACEMENT

Product Description

The NAPCO SLE-LTEV-FIRE StarLink Commercial Fire Sole Path Cellular Alarm Communicator operates on the Verizon LTE network, designed for reliable fire alarm reporting. Compatible with any FACP panel brand nationwide, it features low current draw and panel-powered technology, eliminating extra power supplies. Compliant with UL and NFPA 72 Fire Code, it ensures safety and is over-the-air upgradable.

• Universal full event sole path cellular commercial fire alarm reporting from any panel brand, virtually anywhere
• For use as primary or backup communications on all 12V-24V control panels and FACPs that communicate using Contact ID and 4/2
• Reports to any Central Station nationwide, via dial up or IP Panel-Powered, low current. No extra power supply or conduit

Product Highlights

Ensures reliable fire alarm reporting via Verizon LTE, compatible with various panels, and compliant with safety standards.

Product Information

Standard Information

• Brand: NAPCO
• Manufacturer Part Number: SLE-LTEV-FIRE
• Country of Origin: Dominican Republic

Technical Specifications

• UNSPSC Code: 46191505
• ADI Part Number: NA-SLELTEVFI
• Brand Name: Napco Security Technologies
• Manufacturer: Napco Security Technologies
• Manufacturer Part Number: SLE-LTEV-FIRE
• Product Line: StarLink
• Product Model: SLE-LTEV-FIRE
• Product Name: Starlink Fire SLE-LTEV-FIRE Fire Alarm Communicator
• Product Series: SLE
• Product Type: Alarm Communicator
• Color: Green, Red
• Depth: 1.9"
• Height: 5.4"
• Width: 7.9"
• Input Voltage: 24V, 25V DC
• Country of Origin: DO
• Features: Easy to Install, LTE
• Cellular Network: Verizon LTE
• Diagnostic LED Indicators: Three (3): Green, Signal Strength; Amber-Busy/ Activation; Red-Trouble
• Electrical Ratings (Input Current): 71mA with peak RF transmission current of 200mA
• Ratings for IN 1 Burg/Fire Input (Input Voltage): 9-15VDC
• Ratings for IN 1 Burg/Fire Input (Maximum Input Current): Up to 2mA
• Ratings for IN 2 and IN 3 (Maximum Loop Voltage): Up to 2mA
• Ratings for IN 2 and IN 3 (Maximum Loop Current): Up to 2mA
• Ratings for IN 2 and IN 3 (End of Line Resistor (EOLR) Value): 10K
• PGM Output 3 Ratings (Open Collector Outputs): 3V Max., active; 15V Max., inactive
• PGM Output 3 Ratings (PGM Sink Current): 50mA, Max
• Operating Temperature: 32°F to 120°F (0°C to 49°C)
• Humidity: Maximum 93% (non-condensing)
• Compatible: Universally Compatible Panels
• Network: Cellular Verizon LTE
• Category: Alarm Communicators
• Environment: Indoor
• Installation: DIY Install
