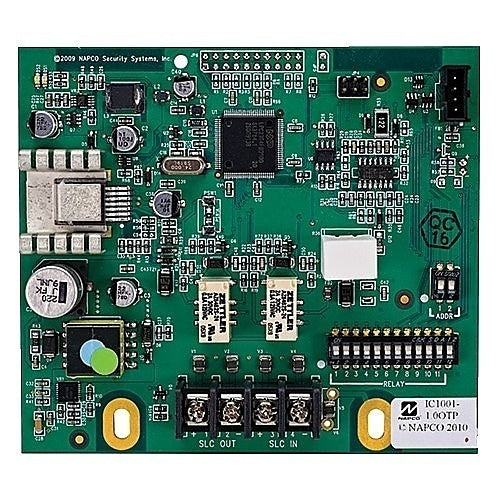

Napco GEMC-FW-SLC Fire Signaling Line Circuit Module up to 128-Point

Product Description

The Napco GEMC-FW-SLC Fire Signaling Line Circuit Module provides a connection between NAPCO Fire SLC devices and Gemini C-Series control panels. This module is essential for setting up fire alarm systems with multiple addressable points.

• Supports up to 128 addressable points
• UL Commercial Fire Listed SLC system
• Compatible with Gemini C-Series control panels

Product Highlights

The GEMC-FW-SLC module is designed to handle complex fire alarm requirements, allowing for efficient monitoring and communication within a fire alarm control system.

Product Information

Standard Information

• Brand: Napco Security Technologies
• Manufacturer: Napco Security Technologies

Technical Specifications

• Product Type: Module
• Compatibility: Gemini C Firewolf Series Fire Panel
• Power Requirements: 24V DC, 70mA
• Output Power: 36V, 150mA maximum
• Device Supported: Fire Alarm Control Panel
• Standards Compliance: UL864 9th Edition, UL985, NFPA 72
• Maximum Modules: 2 modules per control panel, totaling 252 fire SLC zones
