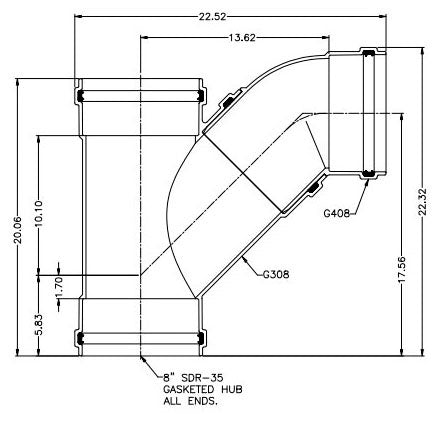

NAPCO G1658 8 x 8 x 8 Gasketed Hub x Gasketed Hub x Gasketed Hub 50 PSI SDR 35

Product Description

The NAPCO G1658 is a combination wye fitting designed for sewer and drain applications. This two-piece fitting connects three lengths of pipe with a nominal size of eight inches and features a 90-degree angle. It is suitable for use in gravity sewer and drainage systems.

• 50 PSI hydrostatic pressure rating
• PVC material per ASTM D3034/D1784 standards
• Meets NSF, UPC, and IAPMO certification standards

Product Highlights

The G1658 wye fitting ensures reliable connections and effective gravity drainage for wastewater systems.

Product Information

Standard Information

• Manufacturer: NAPCO
• UPC: 089938007640

Technical Specifications

• Type: 2-Piece, Combination
• Nominal Size: 8 inch
• Angle: 90 degree
• Material: PVC
• Pressure Rating: 50 PSI (Hydrostatic), 22 inches (Hg)
• Application: Gravity Sewer and Drain, Wastewater
• End Connection: Gasketed Hub x Gasketed Hub x Gasketed Hub
• Material Specification: ASTM D3034/D1784
