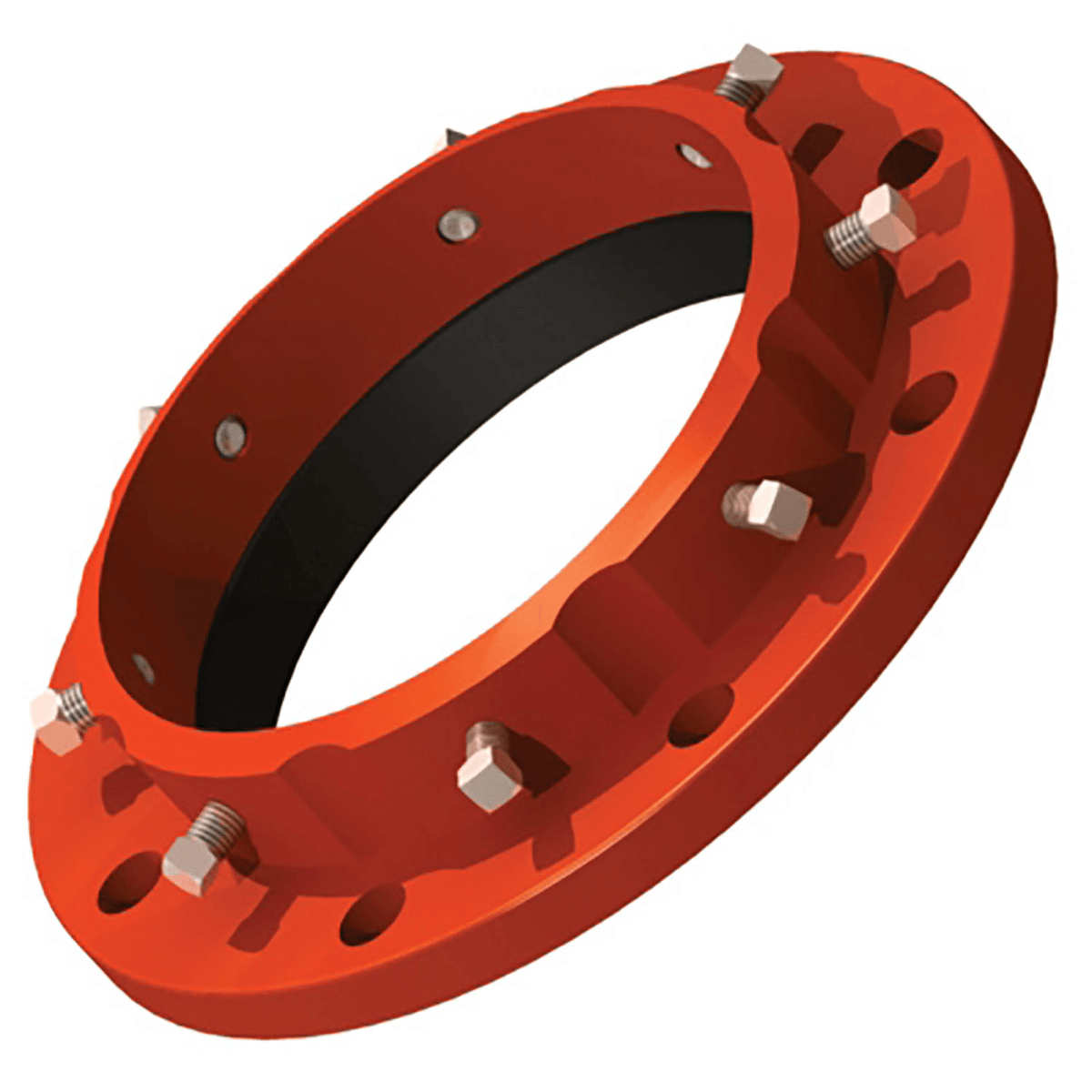

NAPAC 8inch Redi-Flange Flanged Domestic Ductile Iron and Rubber Adapter

Product Description

The NAPAC 8inch Redi-Flange Flanged Domestic Ductile Iron and Rubber Adapter connects flanged ends of valves, fittings, and equipment to plain end Ductile Iron pipe without the need for threading, welding, or grooving. The product includes a fusion-bonded epoxy coating and is built with strong components for simple and quick installation. It is suitable for creating connections between plain-end pipes and flanged joints.

• Fast, easy installation
• Allows rotation before bolt tightening for easy alignment
• Provides end restraint when set screws are tightened

Product Highlights

This adapter is designed for efficiency in plumbing and ductwork applications, facilitating seamless connections.

Product Information

Standard Information

• Brand: NAPAC
• Material: Ductile Iron, Rubber

Technical Specifications

• ANSI: ANSI B16.1 Class 125, ANSI B16.5 Class 150
• ASTM: ASTM A-536 Grade 65-45-12
• End Connection 1: Flanged
• End Connection 2: Plain End
• Fitting Size: 8 in
• Pressure Rating: 250 psi
• Finish: Fusion bonded, epoxy coated, NSF 61 approved material
