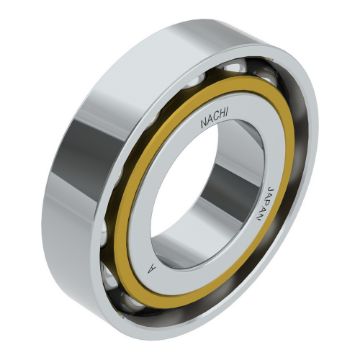

NACHI 7316BMUC3 Angular Contact Ball Bearing 80 mm Bore 170 mm OD 1 Row 40 deg

Product Description

The NACHI 7316BMUC3 is an angular contact ball bearing designed for various load conditions. It features an eighty millimeter diameter bore and a one hundred seventy millimeter outer diameter. This bearing can support radial and axial loads, but it is limited to axial loads in one direction. The 40-degree contact angle enhances its thrust capacity. The design allows for versatile mounting options, suited for setups like DB, DF, and DT pairs. These bearings are often utilized in applications requiring high-speed precision, such as motors and pumps.

• Capable of handling dynamic loads up to 127000 N
• Open closure design for easy maintenance
• Supports high-speed applications with speeds up to 3500 rpm grease or 4700 rpm oil

Product Highlights

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 7300
• Bore Diameter: 80 mm
• Outside Diameter: 170 mm
• Width: 39 mm
• Contact Angle: 40 degrees
• Load Capacity: 127000 N Dynamic / 100000 N Static
• Maximum Speed: 3500 rpm Grease / 4700 rpm Oil
• Cage Material: Brass
• Number of Rows: 1
• Closure Type: Open
• Country of Origin: JP
