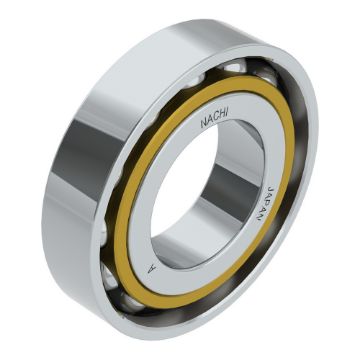

NACHI 7309BMUC3 Angular Contact Ball Bearing 45 mm 100 mm 25 mm

Product Description

The NACHI 7309BMUC3 is an angular contact ball bearing designed for high-speed and precision applications. It effectively supports radial, axial, and composite loads in one direction thanks to its unique design. This bearing provides a high thrust capacity, which is supported by a higher shoulder on one side of the outer ring. The contact angle of 40 degrees optimizes the thrust capacity for heavy axial loads.

• Single-row design with 1 row of balls
• Brass cage for durability and strength
• Flush ground rings for versatile mounting options

Product Highlights

This bearing is ideal for vertical pumps and motors, providing efficient support under heavy loads while minimizing noise and energy consumption. It is suitable for applications where precision and speed are critical.

Product Information

Standard Information

• Brand: NACHI
• MPN: 7309BMUC3

Technical Specifications

• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 25 mm
• Contact Angle: 40 deg
• Load Capacity: 50600 N Dynamic / 34100 N Static
• Maximum Speed: 6200 rpm Grease / 8200 rpm Oil
• Number of Rows: 1
• Closure Type: Open
