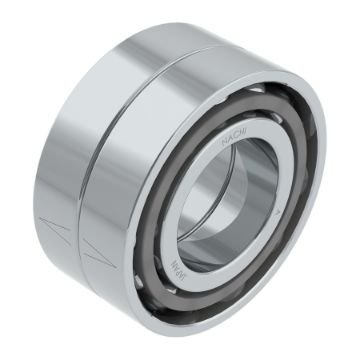

NACHI 7006CYDUP4 NAC Precision Angular Contact Ball Bearing

Product Description

NACHI 7006CYDUP4 NAC is a precision angular contact ball bearing designed for high-speed precision machining and spindle support. This bearing features a bore diameter of thirty millimeters and an outer diameter of fifty-five millimeters. The series is constructed with a steel bearing and a polyamide cage.

• Durable construction handles composite loads.
• Optimal for high-speed applications.
• Open closure allows for lubrication access.

Product Highlights

The NACHI precision angular contact ball bearing supports radial and axial loads for enhanced performance in machinery.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 7000C
• Bore Diameter: 30 mm
• Outside Diameter: 55 mm
• Width: 13 mm
• Contact Angle: 15 deg
• Load Capacity: 16 kN Dynamic / 11.1 kN Static
• Maximum Speed: 27400 rpm Grease / 37500 rpm Oil
• Temperature Rating: 250 deg F
• Number of Rows: 1
• Cage Material: Polyamide
• Bearing Material: Steel
• Country of Origin: JP
