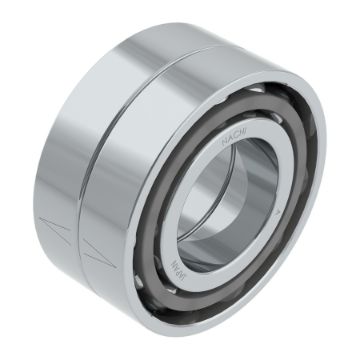

NACHI 7005CYDUP4 NAC Precision Angular Contact Ball Bearing 25 mm Dia Bore 47 mm OD 7005CYDUP4

Product Description

The NACHI 7005CYDUP4 is a precision angular contact ball bearing designed for high-speed applications. This bearing features a bore diameter of twenty-five millimeters and an outer diameter of forty-seven millimeters. Suitable for precision machining and spindle support, it can handle radial, axial, and composite loads.

• Designed for high-speed with a contact angle of fifteen degrees
• Ability to sustain dynamic load capacity of twelve point nine kilonewtons
• Single row design for effective load support

Product Highlights

This NACHI bearing is versatile and engineered for high performance. Ideal for industrial applications requiring reliable speed and accuracy.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 7000C
• Bore Diameter: 25 mm
• Outside Diameter: 47 mm
• Width: 12 mm
• Contact Angle: 15 degrees
• Load Capacity: 12.9 kN Dynamic / 8.65 kN Static
• Maximum Speed: 32,500 rpm Grease / 44,500 rpm Oil
• Cage Material: Polyamide
• Bearing Material: Steel
• Temperature Rating: 250 degrees F
• Closure Type: Open
• Country of Origin: JP
