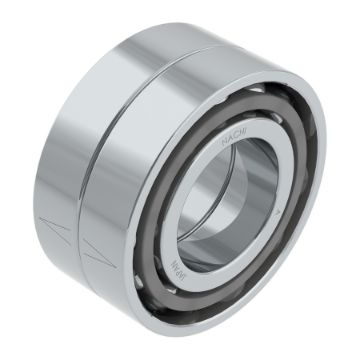

NACHI 7004CYDUP4 NAC Precision Angular Contact Ball Bearing 20 mm (Bore Diameter) 7004CYDUP4

Product Description

NACHI 7004CYDUP4 NAC is a precision Angular Contact Ball Bearing. It features a 20 millimeter bore diameter and a total outer diameter of 42 millimeters, designed for specific contact angles that enhance its load-bearing capacity.

• Single-row design suitable for axial and radial loads.
• Open closure type allows for easy lubrication and cooling.
• Rated for high-speed applications.

Product Highlights

This bearing is ideal for high-speed precision machining and spindle support, providing reliability and performance.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 7000C
• Bore Diameter: 20 mm
• Outside Diameter: 42 mm
• Width: 12 mm
• Contact Angle: 15 deg
• Load Capacity: 11.2 kN Dynamic / 6.6 kN Static
• Maximum Speed: 37500 rpm Grease / 51500 rpm Oil
• Material: Steel with Polyamide Cage
• Temperature Rating: 250 deg F
• Country of Origin: JP
