NACHI 6316C3 Deep Groove Ball Bearing 80 mm Bore 170 mm OD 1 Row 6300

Product Description

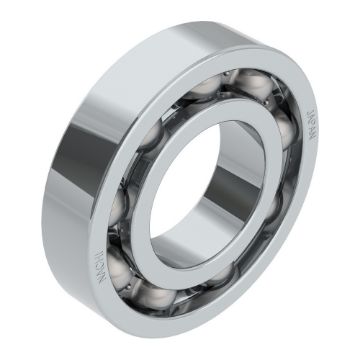

The NACHI 6316C3 is a deep groove ball bearing designed for versatility and high performance. This bearing features an 80 mm bore diameter and a 170 mm outer diameter, making it suitable for various applications, including electric motors and automotive components.

• Single-row deep groove ball construction
• Open closure type for easy maintenance
• Capable of sustaining both radial and axial loads

Product Highlights

The NACHI 6316C3 offers high-speed capability and low torque requirements during operation. It is designed for smooth and quiet performance, which is essential for many industrial applications.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Width: 39 mm
• Bore Diameter: 80 mm
• Outside Diameter: 170 mm
• Load Capacity: 123000 N Dynamic / 86500 N Static
• Maximum Speed: 4000 rpm Grease / 4800 rpm Oil
• Number of Rows: 1
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
• Country of Origin: JP
