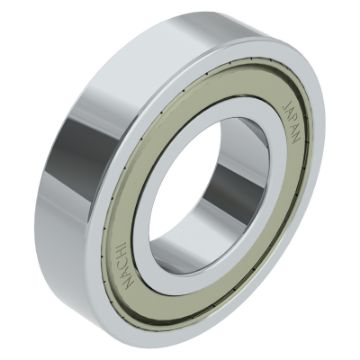

NACHI 6309ZZEC3 6300 Deep Groove Ball Bearing 45 mm Bore 100 mm OD

Product Description

The NACHI 6309ZZEC3 is a deep groove ball bearing designed for various applications. With a bore diameter of forty-five millimeters and an outside diameter of one hundred millimeters, this bearing offers a robust solution for electric motors, automotive alternators, and other machinery.

• Single-row design for high efficiency
• Double shield closure for protection
• Dynamic load capacity of fifty-three thousand Newtons

Product Highlights

This bearing provides smooth operation and requires little maintenance over time.

Product Information

Standard Information

• Brand: NACHI
• MPN: 6309ZZEC3

Technical Specifications

• Series: 6300
• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Width: 25 mm
• Closure Type: Double Shield
• Cage Material: Stamped Steel
• Dynamic Load Capacity: 53000 N
• Static Load Capacity: 32000 N
• Maximum Speed: 7000 rpm Grease / 8200 rpm Oil
• Temperature Rating: 250 deg F
• Country of Origin: JP
