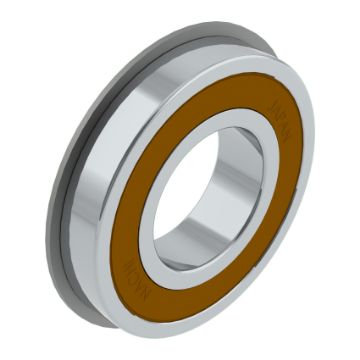

NACHI 6309-2NSE9NR 6300 Deep Groove Ball Bearing 45 mm Bore 100 mm OD

Product Description

The NACHI 6309-2NSE9NR is a deep groove ball bearing designed for versatile use in various applications. This bearing features a bore diameter of forty-five millimeters and an outer diameter of one hundred millimeters. It is a single-row bearing with a width of twenty-five millimeters, capable of sustaining significant loads.

• Sealed design with Buna-N rubber for protection
• Dynamic load capacity of fifty-three thousand newtons
• Maximum speed of four thousand eight hundred RPM with grease

Product Highlights

The NACHI 6309-2NSE9NR deep groove ball bearing provides reliable performance in electric motors, automotive alternators, compressors, and more.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings
• Part Number: 6309-2NSE9NR

Technical Specifications

• Width: 25 mm
• Bore Diameter: 45 mm
• Outside Diameter: 100 mm
• Series: 6300
• Number of Rows: 1
• Load Capacity: 53000 N Dynamic / 32000 N Static
• Maximum Speed: 4800 rpm Grease / 8200 rpm Oil
• Seal Material: Buna-N
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
• Country of Origin: JP
