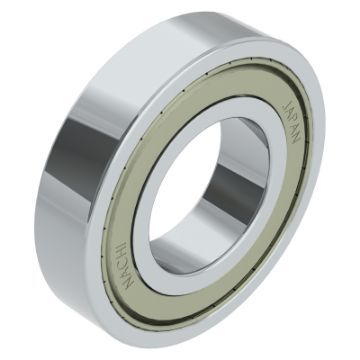

NACHI 629ZZMC3 629 ZZ NAC Ball Bearing 9 mm (Single Row) Replacement MPN

Product Description

The NACHI 629ZZMC3 is a miniature deep groove ball bearing designed for high performance in various applications. This bearing features a 9 mm bore diameter and a 26 mm outer diameter. With a width of 8 mm, it is suitable for electric motors, automotive alternators, compressors, blowers, and transmissions.

• Single-row design for versatility
• Robust construction with steel material
• High-speed capability up to 34000 rpm with oil lubrication

Product Highlights

This bearing offers excellent radial and axial load capacity while ensuring low torque requirements during startup and operation.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Closure Type: Double Shield
• Bore Diameter: 9 mm
• Outside Diameter: 26 mm
• Width: 8 mm
• Load Capacity: 4563 N Dynamic / 1983 N Static
• Maximum Speed: 28000 rpm Grease / 34000 rpm Oil
• Number of Rows: 1
• Cage Material: Machined Bronze
• Bearing Material: Steel
• Temperature Rating: 250 deg F
• Country of Origin: JP
