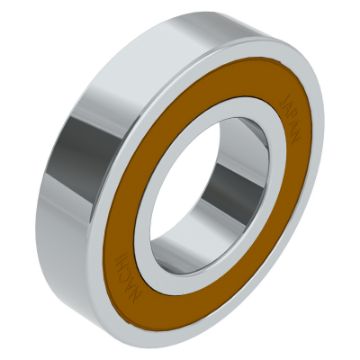

NACHI 6211-2NSEC3 Deep Groove Ball Bearing 55 mm Bore 100 mm OD Replacement MPN

Product Description

The NACHI 6211-2NSEC3 is a deep groove ball bearing featuring a 55 mm bore and 100 mm outer diameter. This bearing is designed for high performance in various applications. It comes with a double seal closure that prevents contamination while maintaining lubrication for effective operation.

• Sealed for protection against dust and contaminants.
• Suitable for electric motors and automotive applications.
• High dynamic load capacity of 43500 Newtons.

Product Highlights

The NACHI 6211-2NSEC3 is built for durability and efficiency. It supports both radial and axial loads and is ideal for use in electric motors, compressors, and more.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 55 mm
• Outside Diameter: 100 mm
• Width: 21 mm
• Number of Rows: 1
• Dynamic Load Capacity: 43500 N
• Static Load Capacity: 29300 N
• Maximum Speed: 4300 rpm Grease / 7700 rpm Oil
• Seal Material: Buna-N
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
• Country of Origin: JP
