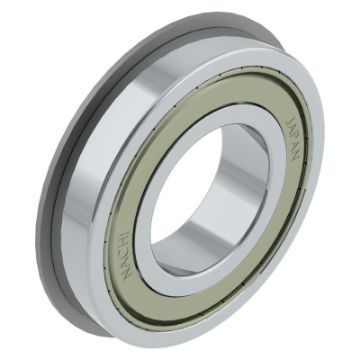

NACHI 6205ZZENR 6200 Deep Groove Ball Bearing 25 mm Bore 52 mm OD 14000 N Dynamic/7900 N Static

Product Description

The NACHI 6205ZZENR is a single-row deep groove ball bearing designed for versatility and performance. With a bore diameter of twenty-five millimeters and an outside diameter of fifty-two millimeters, this bearing meets various application demands. The bearing features a double shield, making it suitable for diverse environments.

• Dynamic load capacity of fourteen thousand Newtons
• Static load capacity of seven thousand nine hundred Newtons
• Operating speed up to thirteen thousand rpm with grease

Product Highlights

This bearing type is widely used in electric motors, automotive alternators, and compressors due to its reliability and minimal maintenance requirements.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 6200
• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Load Capacity: 14000 N Dynamic / 7900 N Static
• Maximum Speed: 13000 rpm Grease / 16000 rpm Oil
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
