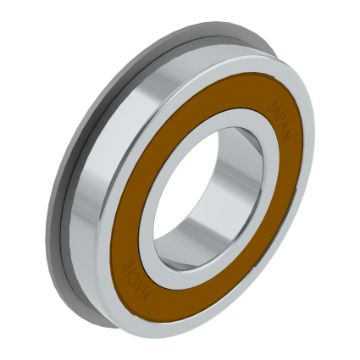

NACHI 6205-2NSE9NR 6200 Deep Groove Ball Bearing 25 mm (Dia Bore) 52 mm (OD)

Product Description

The NACHI 6205-2NSE9NR is a single-row deep groove ball bearing designed for various applications. This bearing features a bore diameter of twenty-five millimeters and an outside diameter of fifty-two millimeters. It is built for high reliability, capable of handling dynamic loads up to fourteen thousand newtons and static loads reaching seven thousand nine hundred newtons.

• Seal Type: Double Seal
• Material: Steel with Buna-N seals
• Maximum Speed: Nine thousand rpm with grease, sixteen thousand rpm with oil

Product Highlights

This product is suitable for electric motors, automotive alternators, starters, compressors, and blowers. The design incorporates Buna-N rubber seals to protect against contamination while providing low maintenance requirements.

Product Information

Standard Information

• Manufacturer: Nachi Bearings
• Type: Deep Groove Ball Bearing

Technical Specifications

• Series: 6200
• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 15 mm
• Load Capacity: 14000 N Dynamic / 7900 N Static
• Maximum Speed: 9000 rpm Grease / 16000 rpm Oil
• Cage Material: Stamped Steel
• Seal Material: Buna-N
• Country of Origin: JP
• Temperature Rating: 250 deg F
