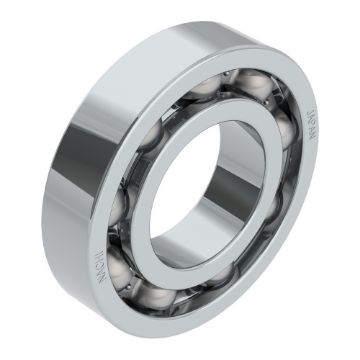

NACHI 6203C3 6203 NAC Power 17 mm Bore

Product Description

The NACHI 6203C3 deep groove ball bearing features a bore diameter of seventeen millimeters and an outside diameter of forty millimeters. This bearing is designed for applications that require high load capacity and speed. It is suitable for use in electric motors, automotive alternators, and compressors.

• Single-row design for stability and versatility.
• Open closure type allows for lubrication maintenance.
• High speed capability up to 21000 rpm.

Product Highlights

This NACHI deep groove ball bearing provides good performance with minimal maintenance requirements. The steel construction and stamped steel cage ensure durability and reliability.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 6200
• Bore Diameter: 17 mm
• Outside Diameter: 40 mm
• Width: 12 mm
• Load Capacity: 9550 N Dynamic / 4800 N Static
• Maximum Speed: 18000 rpm Grease / 21000 rpm Oil
• Closure Type: Open
• Temperature Rating: 250 deg F
• Country of Origin: JP
