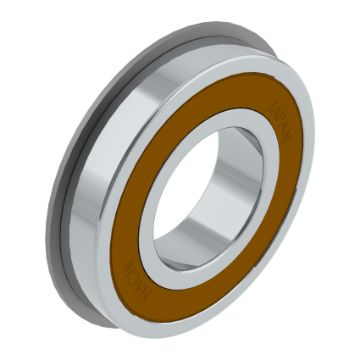

NACHI 6203-2NSE9NR Deep Groove Ball Bearing

Product Description

The NACHI 6203-2NSE9NR is a deep groove ball bearing designed for various applications. With a bore diameter of seventeen millimeters and an outer diameter of forty millimeters, this single-row bearing can handle both radial and axial loads.

• Double sealed design for enhanced protection.
• High-speed performance with a maximum speed of 12,000 RPM with grease.
• Long operational life due to NACHI's original seal design.

Product Highlights

This bearing is ideal for electric motors, automotive alternators, and compressors. Its construction ensures low maintenance and quiet operation.

Product Information

Standard Information

• Brand: NACHI
• Part Number: 6203-2NSE9NR

Technical Specifications

• Bore Diameter: 17 mm
• Outer Diameter: 40 mm
• Width: 12 mm
• Load Capacity: 9550 N Dynamic / 4800 N Static
• Maximum Speed: 12000 RPM Grease / 21000 RPM Oil
• Seal Material: Buna-N
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
