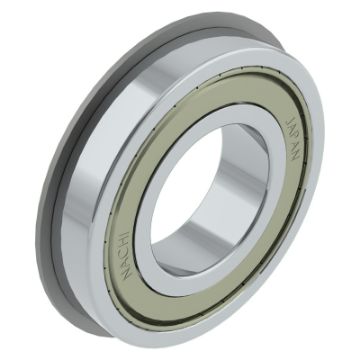

NACHI 6005ZZENR 6000 Deep Groove Ball Bearing 25 mm

Product Description

The NACHI 6005ZZENR is a single-row deep groove ball bearing designed for various industrial applications. With a bore diameter of twenty-five millimeters and an outer diameter of forty-seven millimeters, this bearing is suitable for high-speed operations.

• Excellent high-speed capability
• Good radial and axial load capacity
• Minimal maintenance required

Product Highlights

This bearing is equipped with a double shield, providing protection against contamination and enhancing its lifespan. It features a stamped steel cage and is made from high-quality steel. The NACHI original seal design further ensures the longevity of the bearing.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 6000
• Bore Diameter: 25 mm
• Outside Diameter: 47 mm
• Width: 12 mm
• Load Capacity: 10100 N Dynamic / 5850 N Static
• Maximum Speed: 15000 rpm Grease / 18000 rpm Oil
• Temperature Rating: 250 deg F
• Cage Material: Stamped Steel
