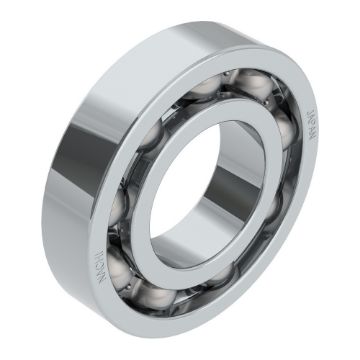

NACHI 6005C3 Deep Groove Ball Bearing 25 mm Bore 47 mm OD

Product Description

The NACHI 6005C3 is a deep groove ball bearing designed for various applications. It features a bore diameter of twenty-five millimeters and an outer diameter of forty-seven millimeters. This single-row bearing has a width of twelve millimeters. It is suitable for use in electric motors, automotive alternators, compressors, and other mechanisms requiring reliable motion.

• Dynamic load capacity of 10100 N and static load capacity of 5850 N
• Open closure type allows for easy lubrication
• High-speed capability with maximum speeds of 15000 rpm when grease lubricated and 18000 rpm with oil

Product Highlights

The NACHI deep groove ball bearing ensures smooth and quiet operation across various machinery.

Product Information

Standard Information

• Manufactured by: Nachi Bearings
• Series: 6000

Technical Specifications

• Bore diameter: 25 mm
• Outside diameter: 47 mm
• Width: 12 mm
• Load capacity: 10100 N Dynamic / 5850 N Static
• Maximum speed: 15000 rpm Grease / 18000 rpm Oil
• Material: Steel
• Cage material: Stamped Steel
• Temperature rating: 250 deg F
