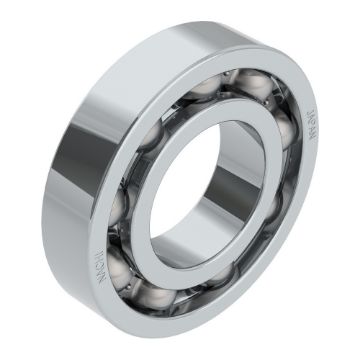

NACHI 6004C3 Deep Groove Ball Bearing 20 mm Bore 42 mm OD Replacement 6004 NAC

Product Description

NACHI 6004C3 is a deep groove ball bearing designed for various applications. The bearing has a bore diameter of twenty millimeters and an outer diameter of forty-two millimeters, with a one-row construction and a width of twelve millimeters. The dynamic load capacity is 9400 Newtons, while the static load capacity is 5000 Newtons.

• High-speed capability
• Good radial and axial load capacity
• Simple design for easy installation

Product Highlights

This bearing type is known for its versatility and can be used in electric motors, automotive alternators, and compressors. The open design requires lubrication, while the stamped steel cage ensures durability.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 6000
• Bore Diameter: 20 mm
• Outside Diameter: 42 mm
• Width: 12 mm
• Load Capacity: 9400 N Dynamic / 5000 N Static
• Maximum Speed: 18000 rpm Grease / 21000 rpm Oil
• Closure Type: Open
• Cage Material: Stamped Steel
• Temperature Rating: 250 deg F
• Number of Rows: 1
• Bearing Material: Steel
• Country of Origin: JP
