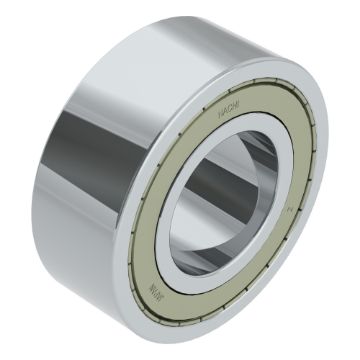

NACHI 5312C3 Angular Contact Ball Bearing 60 mm Bore 130 mm OD 5312 NAC

Product Description

The NACHI 5312C3 Angular Contact Ball Bearing is designed for high-speed applications. With a bore diameter of sixty millimeters and an outer diameter of one hundred thirty millimeters, this bearing is suited for various machine components. It features a double-row design with two rows of balls, providing the ability to support both radial and axial loads effectively.

• Two rows for improved load capacity
• Open closure type for easy lubrication
• Capable of handling dynamic loads up to 128000 N

Product Highlights

This bearing offers efficiency and cost savings by replacing two single-row bearings with one compact design. It is suitable for applications in blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 60 mm
• Outside Diameter: 130 mm
• Width: 54 mm
• Contact Angle: 20 deg
• Number of Rows: 2
• Load Capacity: 128000 N Dynamic / 101000 N Static
• Maximum Speed: 3800 rpm Grease / 5000 rpm Oil
• Cage Material: Pressed Steel
