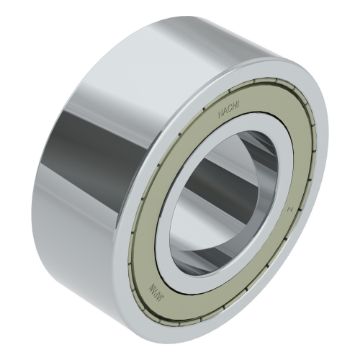

NACHI 5307ZZ 5300 Angular Contact Ball Bearing 35 mm Bore 80 mm OD

Product Description

The NACHI 5307ZZ is a double-row angular contact ball bearing designed for various applications. Featuring a bore diameter of thirty-five millimeters and an outer diameter of eighty millimeters, this bearing effectively handles both axial and radial loads. It operates with a maximum speed of six thousand three hundred rotations per minute when grease is used and eight thousand five hundred rotations per minute with oil.

• Two rows for enhanced load capacity
• Compact design saves axial space
• Sealed construction ensures maintenance-free operation

Product Highlights

This product is efficient for applications such as blowers, high-speed vacuum pumps, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5300
• Bore Diameter: 35 mm
• Outside Diameter: 80 mm
• Width: 34.9 mm
• Contact Angle: 20 degrees
• Load Capacity: 52000 N Dynamic / 37000 N Static
• Maximum Speed: 6300 rpm Grease / 8500 rpm Oil
• Closure Type: Double Shield
• Cage Material: Pressed Steel
• Number of Rows: 2
• Country of Origin: JP
