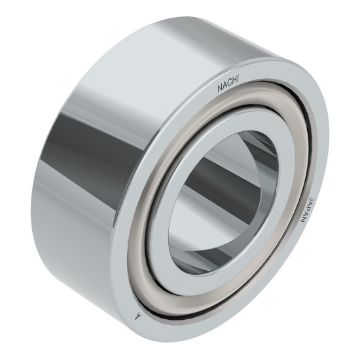

NACHI 5307 NAC Angular Contact Ball Bearing 35 mm Bore 80 mm OD

Product Description

The NACHI 5307 Angular Contact Ball Bearing is designed for various applications, including blowers and high-speed vacuum pumps. This bearing features a bore diameter of thirty-five millimeters and an outer diameter of eighty millimeters. With two rows of balls, it can handle both radial and axial loads effectively. The design also allows for a compact setup compared to using matched pairs of single-row bearings.

• Single bearing design offers more efficient mounting.
• Handles bi-directional axial, radial, and moment loads.
• Ideal for applications like superchargers and motorcycle transmissions.

Product Highlights

This double-row bearing is built to withstand high load capacities and speeds, making it a reliable choice for demanding environments.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5300
• Bore Diameter: 35 mm
• Outside Diameter: 80 mm
• Width: 34.9 mm
• Contact Angle: 20 degrees
• Load Capacity: 52000 N Dynamic / 37000 N Static
• Maximum Speed: 6300 rpm Grease / 8500 rpm Oil
• Cage Material: Pressed Steel
• Closure Type: Open
• Country of Origin: JP
