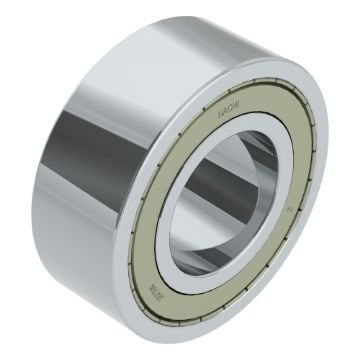

NACHI 5306C3 5306 NAC Angular Contact Ball Bearing 30 mm Bore

Product Description

The NACHI 5306C3 Angular Contact Ball Bearing is designed for reliability and efficiency. With a bore diameter of thirty millimeters and an outer diameter of seventy-two millimeters, this double-row bearing supports axial loads in both directions while occupying less space than two single-row bearings. The product features a contact angle of twenty degrees, making it suitable for various applications.

• Compact design allows for easier handling and mounting.
• Can support radial and axial loads effectively.
• Offered with options for grease or oil lubrication, maximizing performance.

Product Highlights

This bearing is ideal for applications such as blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 30 mm
• Outside Diameter: 72 mm
• Width: 30.2 mm
• Number of Rows: 2
• Contact Angle: 20 deg
• Load Capacity: 41500 N Dynamic / 29000 N Static
• Maximum Speed: 7000 rpm Grease / 9500 rpm Oil
• Cage Material: Pressed Steel
