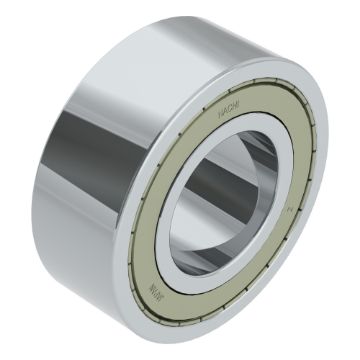

NACHI 5305ZZ 5300 Angular Contact Ball Bearing 25 mm Bore 62 mm OD

Product Description

The NACHI 5305ZZ is an angular contact ball bearing with a bore diameter of 25 mm and an outside diameter of 62 mm. This double-row bearing is compact and engineered to support bi-directional axial loads. It effectively handles radial and moment loads while ensuring low noise and energy efficiency.

• Features a double shield closure for maintenance-free operation.
• Capable of withstanding dynamic loads up to 32,000 N.
• Maximum operational speed of 7,300 rpm with grease and 10,000 rpm with oil.

Product Highlights

This bearing provides significant advantages over two single-row angular contact bearings, leading to improved handling and installation.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5300
• Bore Diameter: 25 mm
• Outside Diameter: 62 mm
• Width: 25.4 mm
• Contact Angle: 20 degrees
• Load Capacity: 32000 N Dynamic / 21600 N Static
• Maximum Speed: 7300 rpm Grease / 10000 rpm Oil
• Cage Material: Pressed Steel
• Number of Rows: 2
• Country of Origin: JP
• Application: Blower, High Speed Vacuum Pump, Super Charger and Motorcycle Transmission
