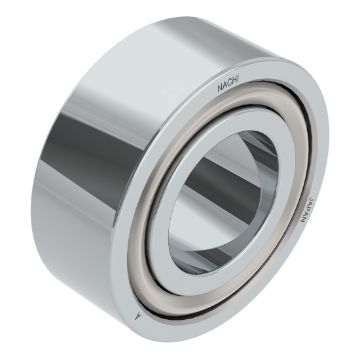

NACHI 5305 NAC Angular Contact Ball Bearing

Product Description

The NACHI 5305 Angular Contact Ball Bearing is designed for high-speed applications. With a bore diameter of twenty-five mm and an outer diameter of sixty-two mm, this bearing excels in performance. It offers dual rows, allowing it to handle axial and radial loads efficiently.

• Supports bi-directional axial loads and radial loads.
• More compact design than two single-row bearings.
• Operates at maximum speeds of seven thousand three hundred rpm using grease or ten thousand rpm with oil.

Product Highlights

It is economical compared to using two single-row angular contact bearings and provides lower maintenance due to the sealed design.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 25 mm
• Outside Diameter: 62 mm
• Width: 25.4 mm
• Number of Rows: 2
• Contact Angle: 20 deg
• Load Capacity: 32000 N Dynamic / 21600 N Static
• Maximum Speed: 7300 rpm Grease / 10000 rpm Oil
• Closure Type: Open
• Cage Material: Pressed Steel
• Country of Origin: JP
