NACHI 5304ZZ 5300 Angular Contact Ball Bearing 20 mm (Bore) 52 mm (OD)

Product Description

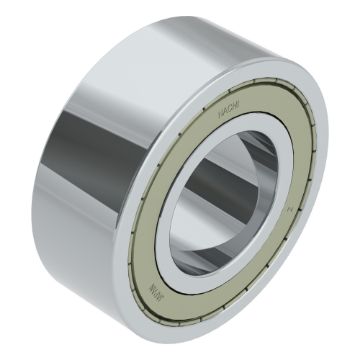

NACHI 5304ZZ Angular Contact Ball Bearing features a 20 mm bore and a 52 mm outer diameter. It includes two rows of balls, making it suitable for applications requiring handling and mounting benefits. This bearing supports radial and axial loads, as well as some moment loads.

• Double-row design for reduced axial space
• Max load of 21700 N Dynamic and 13300 N Static
• Sealed for maintenance-free performance

Product Highlights

This NACHI product is designed for various applications, including blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 52 mm
• Width: 22.2 mm
• Contact Angle: 20 degrees
• Closure Type: Double Shield
• Cage Material: Pressed Steel
• Dynamic Load Capacity: 21700 N
• Static Load Capacity: 13300 N
• Maximum Speed: 9000 rpm Grease / 11000 rpm Oil
• Number of Rows: 2
• Country of Origin: JP
