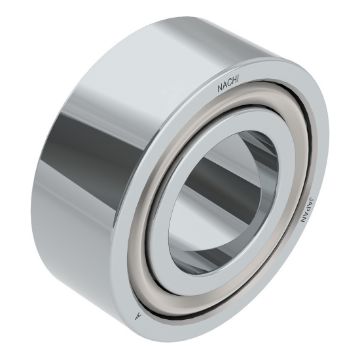

NACHI 5212 NAC Angular Contact Ball Bearing 60 mm Bore 110 mm OD

Product Description

NACHI 5212 is an angular contact ball bearing designed for various applications. This double-row bearing has a bore diameter of sixty millimeters and an outer diameter of one hundred ten millimeters. It has a width of thirty-six point five millimeters and a contact angle of twenty degrees. The bearing is suitable for high-speed applications like blowers and vacuum pumps. Its design allows for both radial and axial loads, making it versatile.

• More compact than two single-row bearings
• Supports radial and axial loads
• Open closure for easy lubrication

Product Highlights

This bearing offers an economical solution for applications that require handling efficiency and compact design.

Product Information

Standard Information

• Brand: NACHI
• Series: 5200

Technical Specifications

• Bore Diameter: 60 mm
• Outside Diameter: 110 mm
• Width: 36.5 mm
• Contact Angle: 20 deg
• Load Capacity: 76000 N Dynamic / 62000 N Static
• Maximum Speed: 4300 rpm (Grease) / 5600 rpm (Oil)
• Cage Material: Pressed Steel
• Number of Rows: 2
