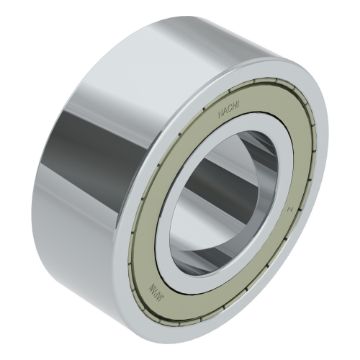

NACHI 5208ZZ 5200 Angular Contact Ball Bearing 40 mm Diameter 80 mm Outside Diameter

Product Description

The NACHI 5208ZZ is a double-row angular contact ball bearing designed for efficient load handling. With a bore diameter of forty millimeters and an outside diameter of eighty millimeters, this bearing is compact and effective for various applications.

• Designed for bi-directional axial, radial, and moment loads.
• Sealed for maintenance-free operation.
• Capable of handling significant load capacity with low noise operation.

Product Highlights

This bearing is ideal for applications such as blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• MPN: 5208ZZ

Technical Specifications

• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Width: 30.2 mm
• Load Capacity: 40000 N Dynamic / 30500 N Static
• Contact Angle: 20 deg
• Maximum Speed: 6000 rpm Grease
• Number of Rows: 2
• Closure Type: Double Shield
• Cage Material: Pressed Steel
• Country of Origin: JP
