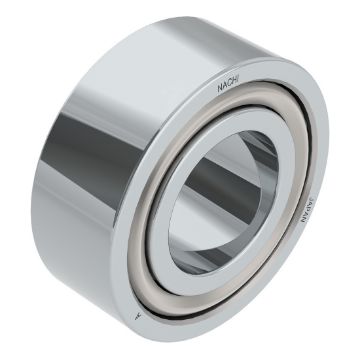

NACHI 5208 NAC Angular Contact Ball Bearing 40 mm Bore 80 mm OD

Product Description

The NACHI 5208 Angular Contact Ball Bearing is designed for versatility and efficiency. This bearing features a bore diameter of forty millimeters and an outer diameter of eighty millimeters. It consists of two rows, which allows it to handle axial loads in both directions while maintaining a compact design.

• Compact design allows for space-saving installations.
• Supports both radial and axial loads effectively.
• Open closure type suitable for various applications.

Product Highlights

Ideal for applications such as blowers, high-speed vacuum pumps, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• MPN: 5208
• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Width: 30.2 mm
• Contact Angle: 20 degrees
• Load Capacity: 45500 N Dynamic / 34000 N Static
• Maximum Speed: 6000 rpm Grease / 8000 rpm Oil
• Number of Rows: 2
• Cage Material: Pressed Steel
• Country of Origin: Japan
