NACHI 5208-2NS 5200 Angular Contact Ball Bearing 40 mm Dia Bore

Product Description

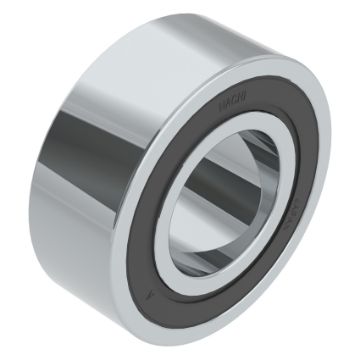

The NACHI 5208-2NS is a double-row angular contact ball bearing designed for enhanced performance in demanding applications. This bearing features a forty millimeter bore diameter and an eighty millimeter outer diameter, making it suitable for a wide range of machinery including high-speed vacuum pumps and blower systems.

• Compact design replaces matched pairs of single-row bearings.
• Supports both radial and axial loads in either direction.
• Sealed for maintenance-free operation.

Product Highlights

This bearing is able to handle bi-directional loads while being more economical than using two single-row angular contact bearings.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5200
• Bore Diameter: 40 mm
• Outside Diameter: 80 mm
• Width: 30.2 mm
• Contact Angle: 20 degrees
• Load Capacity: 40000 N Dynamic, 30500 N Static
• Maximum Speed: 6000 rpm Grease
• Cage Material: Pressed Steel
• Closure Type: Double Seal
• Origin: Japan
