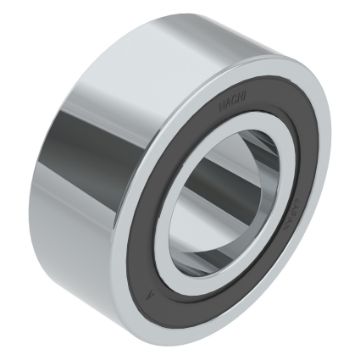

NACHI 5207-2NS 5200 Angular Contact Ball Bearing 35 mm Bore 72 mm OD 2 Rows 5207-2NS

Product Description

The NACHI 5207-2NS is a double-row angular contact ball bearing designed for versatile applications. This product features a bore diameter of thirty-five millimeters and an outside diameter of seventy-two millimeters. It effectively supports loads in both radial and axial directions. It is suitable for use in blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

• Supports bi-directional axial and radial loads
• Economical alternative to matched single-row bearings
• Low maintenance design with sealed closure

Product Highlights

This ball bearing provides enhanced handling and installation benefits due to its compact design.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 35 mm
• Outside Diameter: 72 mm
• Width: 27 mm
• Number of Rows: 2
• Contact Angle: 20 deg
• Closure Type: Double Seal
• Cage Material: Pressed Steel
• Dynamic Load Capacity: 35000 N
• Static Load Capacity: 25900 N
• Maximum Speed: 7000 rpm Grease
• Country of Origin: JP
