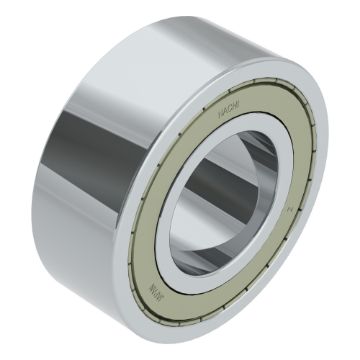

NACHI 5206ZZ 5200 Angular Contact Ball Bearing 30 mm Bore 62 mm OD

Product Description

The NACHI 5206ZZ is a double-row angular contact ball bearing designed for various applications. This bearing has a bore diameter of thirty millimeters and an outer diameter of sixty-two millimeters. It features two rows and a width of twenty-three point eight millimeters. The contact angle is twenty degrees, allowing it to accommodate substantial loads. The dynamic load capacity is twenty-five thousand nine hundred Newtons, while the static load capacity is eighteen thousand seven hundred Newtons.

• Double shield closure for enhanced protection
• Supports radial, axial, and moment loads
• Maintenance-free with a pressed steel cage

Product Highlights

Ideal for high-speed applications, this bearing is suitable for blowers, high-speed vacuum pumps, and motorcycle transmissions.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Width: 23.8 mm
• Series: 5200
• Closure Type: Double Shield
• Bore Diameter: 30 mm
• Cage Material: Pressed Steel
• Contact Angle: 20 deg
• Load Capacity: 25900 N Dynamic / 18700 N Static
• Maximum Speed: 8000 rpm Grease
• Number of Rows: 2
• Outside Diameter: 62 mm
• Country of Origin: JP
