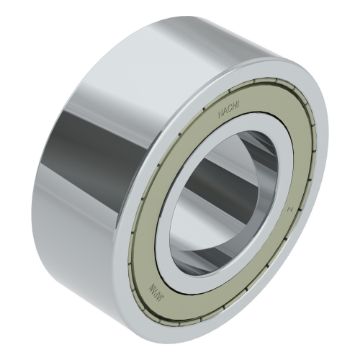

NACHI 5206C3 5206 NAC Ball Bearing 30 mm Bore 62 mm OD

Product Description

The NACHI 5206C3 is an angular contact ball bearing designed for a variety of applications. This bearing features a bore diameter of thirty millimeters and an outer diameter of sixty-two millimeters. The double-row design allows for effective handling of both radial and axial loads, reducing the space required for installation.

• Two rows of balls for increased load capacity
• Open closure type for easy lubrication
• Pressed steel cage for durability

Product Highlights

The NACHI angular contact ball bearing series 5200 is suitable for high-speed applications such as blowers and vacuum pumps. It maintains a compact form while handling significant loads.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Width: 23.8 mm
• Contact Angle: 20 degrees
• Bore Diameter: 30 mm
• Outside Diameter: 62 mm
• Dynamic Load Capacity: 30500 N
• Static Load Capacity: 21700 N
• Maximum Speed: 8000 rpm Grease / 11000 rpm Oil
• Cage Material: Pressed Steel
