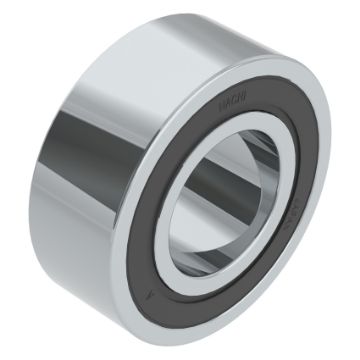

NACHI 5206-2NS 5200 Angular Contact Ball Bearing 30 mm Diameter Bore 62 mm OD

Product Description

The NACHI Angular Contact Ball Bearing with MPN 5206-2NS features a double-row design that combines two single-row angular contact bearings. This product is designed for applications requiring efficient load support in both radial and axial directions, while maintaining compactness.

• Compact design with a 20-degree contact angle.
• Offers maintenance-free operation with double seal closure.
• Suitable for applications such as blowers, high-speed vacuum pumps, and motorcycle transmissions.

Product Highlights

This bearing provides reliable performance with a dynamic load capacity of 25,900 N and a static load capacity of 18,700 N, enabling effective load distribution across various applications.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5200
• Bore Diameter: 30 mm
• Outside Diameter: 62 mm
• Width: 23.8 mm
• Contact Angle: 20 deg
• Load Capacity: 25,900 N Dynamic / 18,700 N Static
• Maximum Speed: 8,000 rpm Grease
• Cage Material: Pressed Steel
• Closure Type: Double Seal
• Country of Origin: JP
