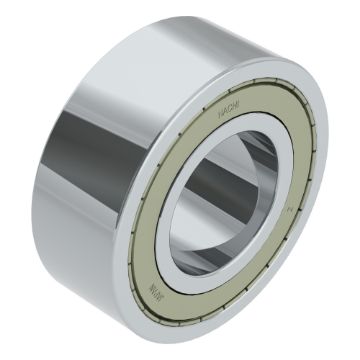

NACHI 5205ZZ 5200 Angular Contact Ball Bearing 25 mm Bore 52 mm OD 5205 ZZ NAC

Product Description

The NACHI 5205ZZ is a double-row angular contact ball bearing designed for efficiency. With a bore diameter of twenty-five millimeters and an outside diameter of fifty-two millimeters, it features a double shield closure for protection against contaminants.

• Low friction design for enhanced energy efficiency.
• Handles radial and axial loads in both directions.
• Long life rated for high-speed applications.

Product Highlights

This ball bearing is compact and cost-effective, offering a reduction in assembly time and increased reliability in various applications.

Product Information

Standard Information

• Brand: NACHI
• MPN: 5205ZZ

Technical Specifications

• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 20.6 mm
• Number of Rows: 2
• Contact Angle: 20 deg
• Load Capacity: 21800 N Dynamic / 15100 N Static
• Maximum Speed: 9500 rpm Grease / 13000 rpm Oil
• Cage Material: Pressed Steel
