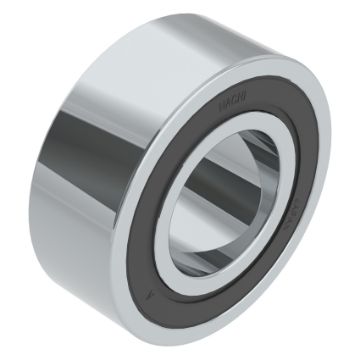

NACHI 5205-2NS 5200 Angular Contact Ball Bearing 25 mm 52 mm 5205 2NSL NAC

Product Description

The NACHI 5205-2NS is an angular contact ball bearing designed for various high-performance applications. This bearing features a bore diameter of twenty-five millimeters and an outer diameter of fifty-two millimeters. It has two rows of balls and is designed to handle both radial and axial loads, making it suitable for blower systems and vacuum pumps.

• Double-row design for compact installation
• Sealed for maintenance-free operation
• Supports high-speed applications with minimal friction

Product Highlights

This bearing combines efficiency with ease of use, maximizing load support while reducing overall friction.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Series: 5200
• Bore Diameter: 25 mm
• Outside Diameter: 52 mm
• Width: 20.6 mm
• Contact Angle: 20 deg
• Load Capacity: 21800 N Dynamic / 15100 N Static
• Maximum Speed: 9500 rpm Grease / 13000 rpm Oil
• Cage Material: Pressed Steel
• Closure Type: Double Seal
• Number of Rows: 2
• Country of Origin: JP
