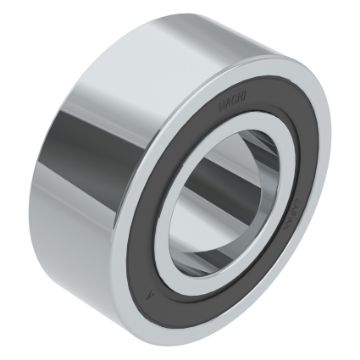

NACHI 5204-2NS Angular Contact Ball Bearing 20 mm Bore 47 mm OD 5204-2NS

Product Description

The NACHI 5204-2NS is a double-row angular contact ball bearing with a bore diameter of twenty millimeters. It features a robust construction that allows it to handle radial, axial, and moment loads efficiently. This bearing is designed to provide greater space savings and operational efficiency in various applications.

• Supports bi-directional axial and radial loads.
• Sealed design ensures maintenance-free operation.
• Compact replacement for two single-row bearings.

Product Highlights

This bearing is ideal for applications such as blowers, high-speed vacuum pumps, and motorcycle transmissions. The double-row design means it can replace matched single-row bearings, simplifying installation and maintenance.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Bore Diameter: 20 mm
• Outside Diameter: 47 mm
• Width: 20.6 mm
• Contact Angle: 20 degrees
• Number of Rows: 2
• Closure Type: Double Seal
• Cage Material: Pressed Steel
• Load Capacity: 20000 N Dynamic / 12700 N Static
• Maximum Speed: 10000 rpm Grease / 14000 rpm Oil
• Series: 5200
• Country of Origin: JP
