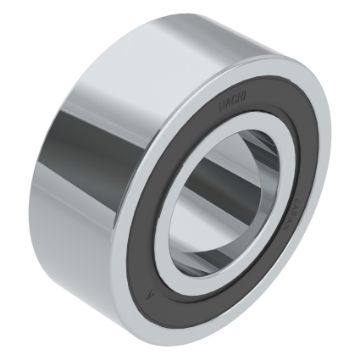

NACHI 5202-2NS Angular Contact Ball Bearing 15 mm Bore 35 mm OD

Product Description

The NACHI 5202-2NS is an angular contact ball bearing with a bore diameter of fifteen millimeters and an outer diameter of thirty-five millimeters. This double-row design features a contact angle of twenty degrees and is configured to handle both radial and axial loads. This makes it suitable for applications such as blowers, high-speed vacuum pumps, superchargers, and motorcycle transmissions.

• Compact design for space-saving installations
• Double seal closure for reduced maintenance
• High efficiency with lower friction

Product Highlights

Designed for versatility, this bearing provides reliable performance in various high-speed applications.

Product Information

Standard Information

• Brand: NACHI
• Part Number: 5202-2NS

Technical Specifications

• Series: 5200
• Bore Diameter: 15 mm
• Outside Diameter: 35 mm
• Width: 15.9 mm
• Contact Angle: 20 degrees
• Closure Type: Double Seal
• Cage Material: Pressed Steel
• Load Capacity: 11900 N Dynamic / 7200 N Static
• Maximum Speed: 14000 rpm Grease / 19000 rpm Oil
