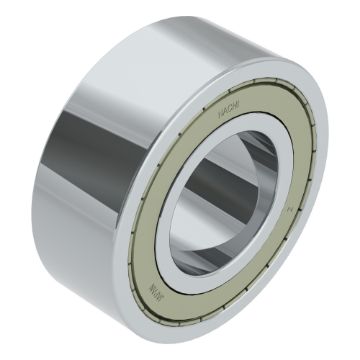

NACHI 5201ZZ 5200 Angular Contact Ball Bearing 12 mm Bore

Product Description

The NACHI 5201ZZ Angular Contact Ball Bearing features a bore diameter of twelve millimeters and an outside diameter of thirty-two millimeters. It is designed with two rows of balls, providing enhanced load capacity and performance in various applications.

• Load capacity: 10700 N dynamic / 5950 N static
• Maximum speed: 16000 RPM with grease / 22000 RPM with oil
• Double shield closure for maintenance-free operation

Product Highlights

This bearing is suitable for multiple applications, including blowers and high-speed vacuum pumps, ensuring reliability and efficiency.

Product Information

Standard Information

• Brand: NACHI
• Manufacturer: Nachi Bearings

Technical Specifications

• Width: 15.9 mm
• Series: 5200
• Closure Type: Double Shield
• Bore Diameter: 12 mm
• Cage Material: Pressed Steel
• Contact Angle: 20 degrees
• Maximum Speed: 16000 RPM Grease / 22000 RPM Oil
• Number of Rows: 2
• Outside Diameter: 32 mm
• Country of Origin: JP
